9VAC Wall Plug-In Power Supply with Screw Terminals and Mounting Tab
9VAC Wall Plug-In Power Supply with Screw Terminals and Mounting Tab
SKU:WAL-394b02
Reliable 9VAC Wall Plug-In Power Supply for external power needs, UL Class 2 rated, compact design with screw terminals and mounting tab.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
9VAC Wall Plug-In Power Supply with Screw Terminals and Mounting Tab
$29.99
Quantity: 1
Claim Your Seller Account
9VAC Wall Plug-In Power Supply with Screw Terminals and Mounting Tab
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

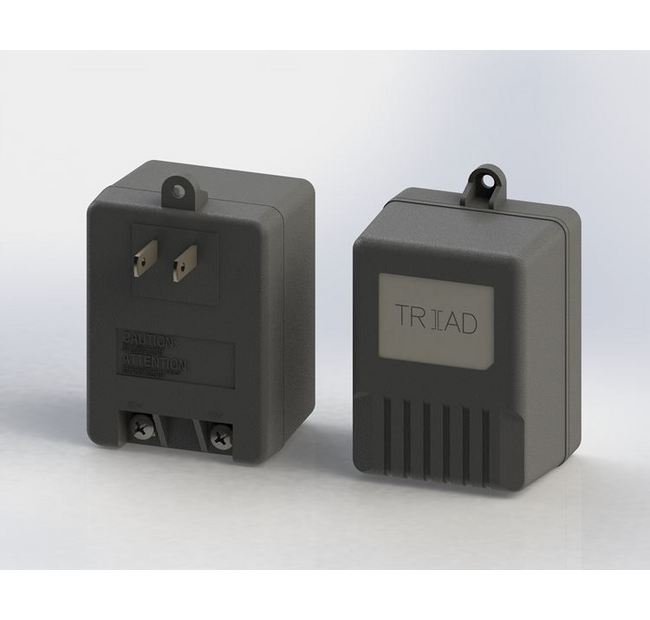

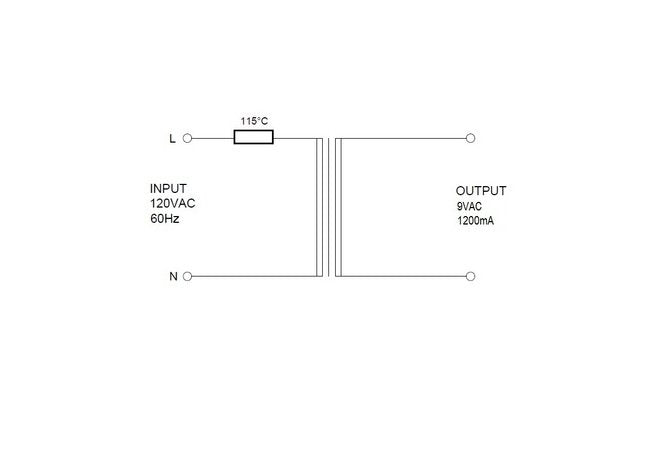

The 9VAC Wall Plug-In Power Supply is a reliable external power source suitable for a range of applications. With a primary input voltage of 120VAC and an output voltage of 9VAC at 1200mA, this power supply offers stable performance. It meets Class 2 UL rating standards and features thermoplastic molded enclosure for durability. The compact design with screw terminals and mounting tab ensures easy installation. Operating temperature ranges from -10 to +40ºC, with a max temperature rise of 30ºC at rated load, making it ideal for various environments.
Product Specifications
Mechanical Parameters Case Type
Thermoplastic Molded Enclosure
Specifications 2007 Eisa Efficiency
VI
Specifications Average Efficiency
82.38 %

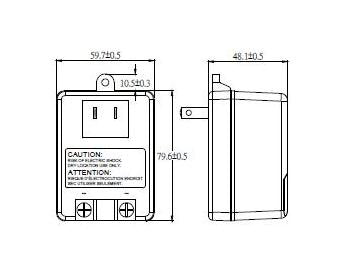

Specifications Depth
48.1 mm
Specifications Height
79.6 mm
Specifications Input Operating Frequency
60 Hz
Specifications Input Plug
North America
Specifications Intended Applications
External Power Source
Specifications Length
59.7 mm
Specifications Maximum Temperature Rise At Rated Load
30 ºC
Specifications Maximum Temperature Rise On Enclosure Surface
45 ºC
Specifications Mounting Configuration
Wall Plug-In
Specifications No Load Power Stand By
⤠0.21 W
Specifications Operating Temperature Range
-10 to +40 ºC
Specifications Output Type
AC
Specifications Output Voltage
9.0 V
Specifications Power Supply Ul Rating
Class 2
Specifications Primary Excitation Current
< 4 mA
Specifications Primary Input Voltage Ac
120 V
Specifications Secondary No Load Reference Voltage Ac
< 11.6 V
Specifications Secondary Output Current Ac
1200 mA
Specifications Secondary Output Voltage Ac At Secondary Rated Cu
9 V
Specifications Stock
No
Specifications Tolerance For Secondary Output Voltage Ac
± 5 %
