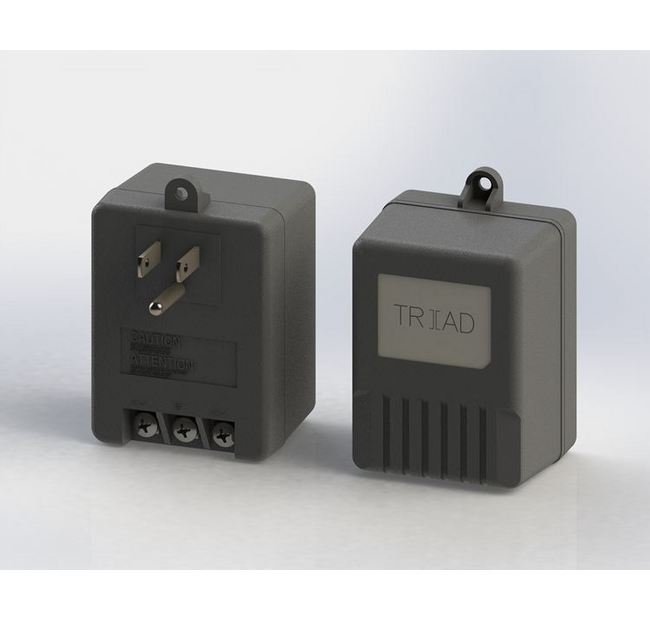

9VAC Wall Plug-In Power Supply with Screw Terminals, UL Level VI
9VAC Wall Plug-In Power Supply with Screw Terminals, UL Level VI
SKU:WAL-828c99
Get efficient and reliable 9VAC power with this UL Level VI compliant wall plug-in. Perfect for secure connections, it's compact and versatile for various applications.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
9VAC Wall Plug-In Power Supply with Screw Terminals, UL Level VI
$34.99
Quantity: 1
Claim Your Seller Account
9VAC Wall Plug-In Power Supply with Screw Terminals, UL Level VI
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

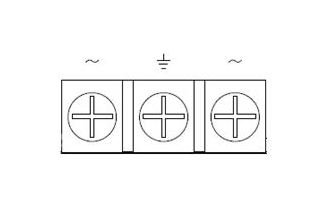

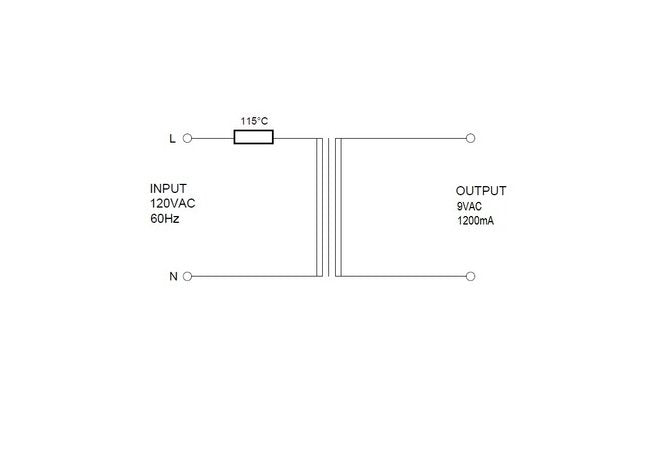

The 9VAC Wall Plug-In Power Supply offers reliable power output of 1200mA with screw terminals and pass-through ground for secure connections. Compliant with UL Level VI efficiency standards, it provides a stable 9V output, ideal for various applications. With compact dimensions and a mounting tab, this power supply is convenient and versatile for both consumer and institutional use.
Product Specifications
Mechanical Parameters Case Type
Thermoplastic Molded Enclosure
Specifications 2007 Eisa Efficiency
VI
Specifications Average Efficiency
82.38 %

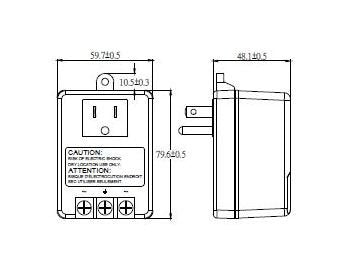

Specifications Depth
48.1 mm
Specifications Height
79.6 mm
Specifications Input Operating Frequency
60 Hz
Specifications Input Plug
North America
Specifications Intended Applications
External Power Source
Specifications Length
59.7 mm
Specifications Maximum Temperature Rise At Rated Load
30 ºC
Specifications Maximum Temperature Rise On Enclosure Surface
45 ºC
Specifications Mounting Configuration
Wall Plug-In
Specifications No Load Power Stand By
⤠0.21 W
Specifications Operating Temperature Range
-10 to +40 ºC
Specifications Output Type
AC
Specifications Output Voltage
9.0 V
Specifications Power Supply Ul Rating
Class 2
Specifications Primary Excitation Current
< 4 mA
Specifications Primary Input Voltage Ac
120 V
Specifications Secondary No Load Reference Voltage Ac
< 11.6 V
Specifications Secondary Output Current Ac
1200 mA
Specifications Secondary Output Voltage Ac At Secondary Rated Cu
9 V
Specifications Stock
No
Specifications Tolerance For Secondary Output Voltage Ac
± 5 %
