A-62x Air Bearing Rotary Table with Direct Drive Torque Motors
A-62x Air Bearing Rotary Table with Direct Drive Torque Motors
SKU:A62-327dd6
High precision air bearing rotary table for friction-free indexing, scanning, and positioning in cleanroom environments.
Regular price
$2,999.99
Regular price
Sale price
$2,999.99
Unit price
per
Initiate Order
A-62x Air Bearing Rotary Table with Direct Drive Torque Motors
$2,999.99
Quantity: 1
Claim Your Seller Account
A-62x Air Bearing Rotary Table with Direct Drive Torque Motors
$2,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

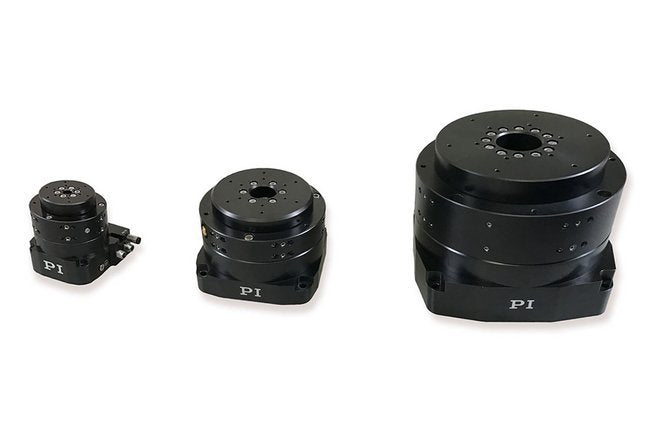

The A-62x High Precision Air Bearing Rotary Table offers friction-free operation, making it ideal for indexing, positioning, scanning, and measuring technology. Designed for accuracy and high stiffness, this motorized rotation stage can be effortlessly mounted vertically or horizontally in any orientation. With options for point-to-point indexing or constant velocity scanning, the RM stages provide superior travel accuracy, flatness, and wobble performance. The optional absolute encoder eliminates the need for referencing on switch-on, enhancing operational efficiency and safety. Perfect for optical alignment, metrology, inspection systems, calibration, and scanning applications, this rotary table is cleanroom-compatible and maintenance-free.
Product Specifications
More Information Specifications Cad Drawings Manuals Etc Click L

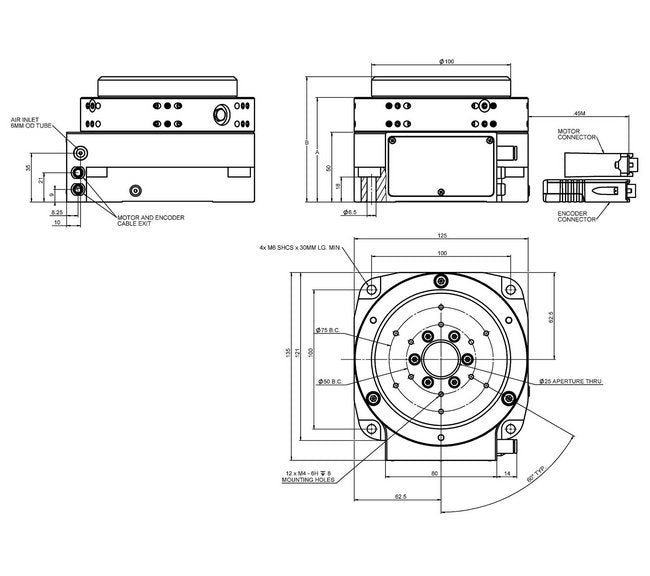

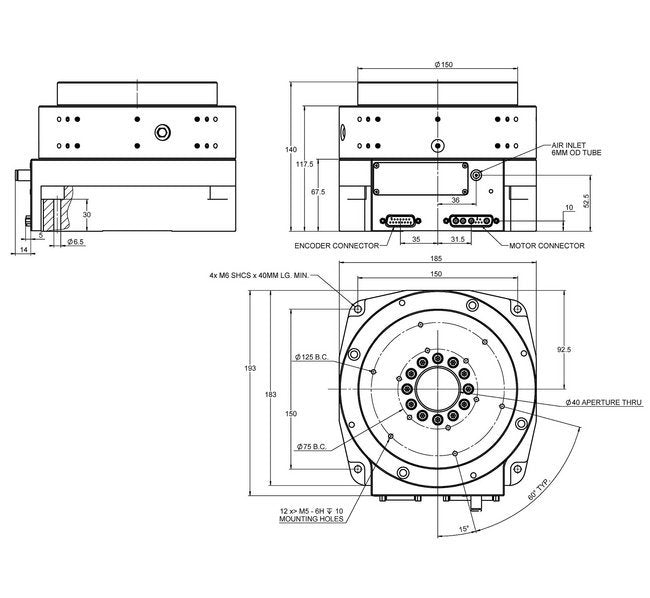

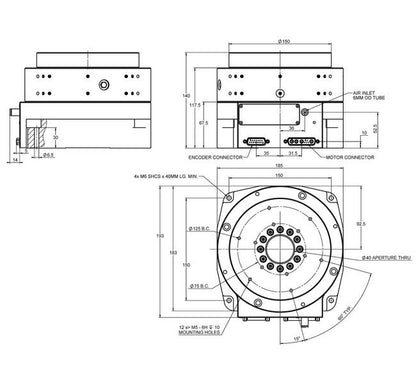

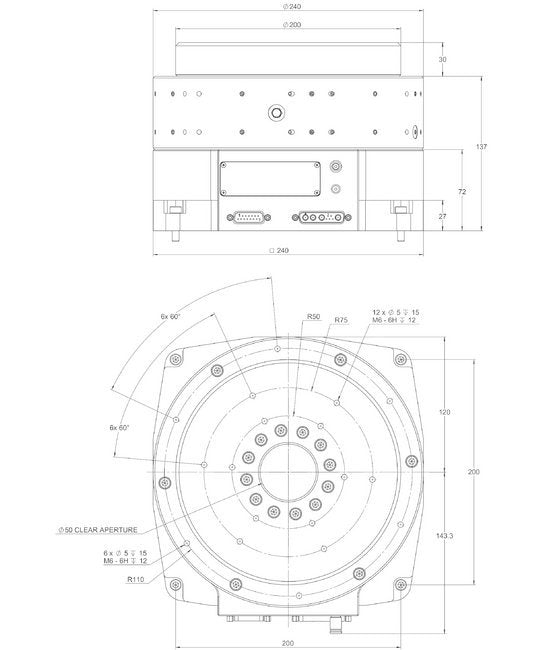

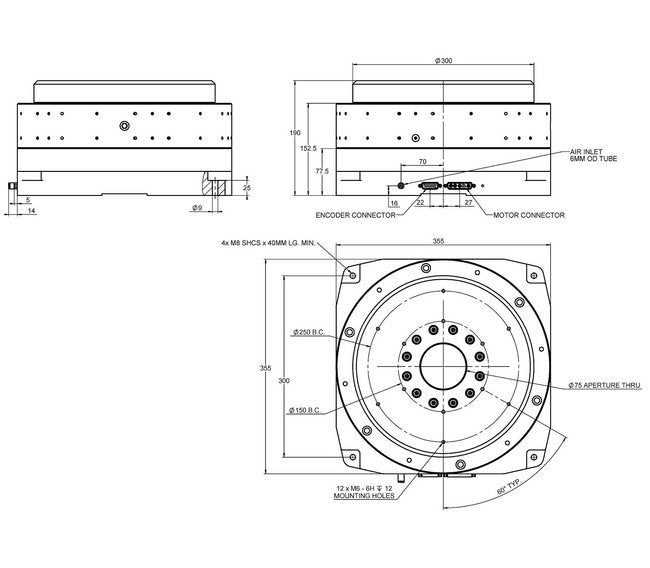

Specifications, CAD / Drawings, Manuals, Videos
