A-FAB 5.5HP Hydraulic Angle Roll Bending Machine
A-FAB 5.5HP Hydraulic Angle Roll Bending Machine
SKU:REV-9ae457
Powerful 5.5HP Hydraulic Angle Roll Bending Machine by RMT for precise bending tasks. Durable construction with advanced features for efficiency.
Regular price
$9,479.99
Regular price
Sale price
$9,479.99
Unit price
per
Initiate Order
A-FAB 5.5HP Hydraulic Angle Roll Bending Machine
$9,479.99
Quantity: 1
Claim Your Seller Account
A-FAB 5.5HP Hydraulic Angle Roll Bending Machine
$9,479.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

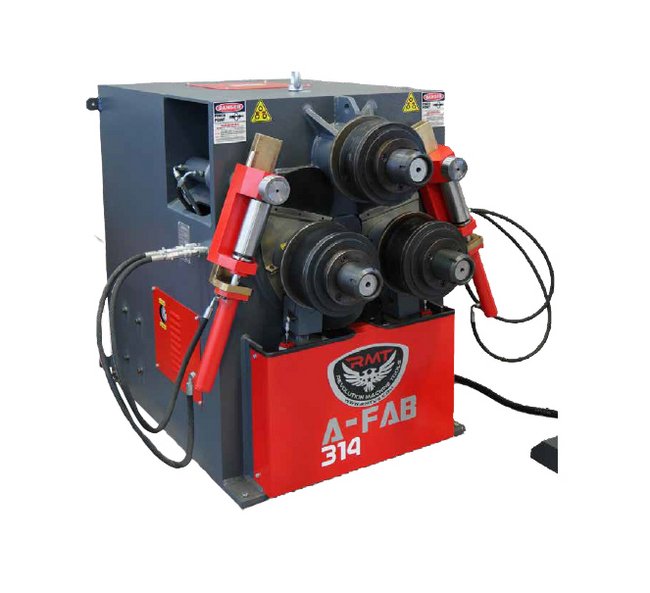

The A-FAB 5.5HP Hydraulic Angle Roll Bending Machine by RMT is a powerful solution for precision bending tasks. With a 5.5 hp motor power and the ability to handle up to 8" SCH 40 Pipe Bending Capacity, this machine offers versatile functionality for various applications. Featuring steel construction, hardened and ground shafts, and 3 powered rolls, it ensures durability and high performance. Equipped with advanced features like 3-axis mechanical lateral angle guide rolls and digital read-outs, this machine provides precision and efficiency. RMT's commitment to quality is evident in the 10-year warranty on main frames, making it a dependable choice for industrial needs.
Product Specifications
Angle Leg In Angle Leg In Dimension
2-3/4 x 2-3/4 x 1/4 in
Angle Leg In Angle Leg In Minimum Internal Diameter
28 in
Angle Leg In Angle Leg In Note
Standard RollsSpecial Rolls
Angle Leg Out Angle Leg Out Dimension
3 x 3 x 5/16 in
Angle Leg Out Angle Leg Out Minimum Internal Diameter
32 in
Angle Leg Out Angle Leg Out Note
Standard RollsSpecial Rolls
Benefits
For Ornamental Applications RMT angle rolls can be equipped with optional scroll bending tools, picket twisting tools and helical stair rail attachments. If you are considering buying a Manual Bender or Hydraulic Bender or CNC Pipe Bender or Tube Roll or any type of Roll Bender, RMT can satisfy your production requirements. Our angle rolls are available in all sizes from small economical portable benders to large heavy duty pipe benders that will fit your rolling budget.RMT's service department employs factory trained experienced professionals to service your spare parts, repair and technical needs. We stock tooling and spare parts. Our CNC machine shop can build any custom tooling you need with a rapid turn-around. We manufacture tooling for other brands of Ring Rollers and Roll Bending Machines. For high volume roll bending or multi-radius parts, our optional CNC Angle Rolls with direct radius input let you roll up to the next level with the highest precision, repeatability and speed. Our high quality OEM components are non-proprietary and available worldwide. Main frames carry a 10 year warranty! We are confident in RMT superior quality. Regardless of your need and budget for a roll bender, you will benefit from choosing RMT. Our true quality and integrity is in the "details" of every RMT roll bender. Compare and see for yourself why RMT Bending Machines have become on of the most respected brand names in the roll bending industry. Come visit us to see our machines first hand and experience the RMT difference!
C Section Leg In C Section Leg In Dimension
C5-9#
C Section Leg In C Section Leg In Minimum Internal Diameter
63 in
C Section Leg In C Section Leg In Note
Standard RollsSpecial Rolls
C Section Leg Out C Section Leg Out Dimension
C5-9#
C Section Leg Out C Section Leg Out Minimum Internal Diameter
63 in
C Section Leg Out C Section Leg Out Note
Standard RollsSpecial Rolls
Dimensions Height
56 in
Dimensions Length
58 in
Dimensions Width
40 in
Flat Along Edge Flat Along Edge Minimum Internal Diameter
79 in
I Section Easy Way I Section Easy Way Minimum Internal Diameter
24 in
Schedule 40 Pipe Note For Schedule 40 Pipe Minimum Internal Diam
Can be changed according to deformation
Schedule 40 Pipe Schedule 40 Pipe Minimum Internal Diameter
15 in | 32 in
Solid Rectangle Solid Rectangle Minimum Internal Diameter
24 in
Solid Round Solid Round Diameter
2 in
Solid Round Solid Round Minimum Internal Diameter
20 in
Solid Square Solid Square Minimum Internal Diameter
15 in | 20 in
Specifications Bottom Shaft Diameter
2.75 in
Specifications Motor Power
5.5 hp
Specifications Power Source
Hydraulic
Specifications Roll Diameter
9.64 in
Specifications Top Shaft Diameter
3.14 in
Tubing Rectangle Note For Tubing Rectangle Minimum Internal Diam
Can be changed according to deformation
Tubing Rectangle Tubing Rectangle Minimum Internal Diameter
32 in
Tubing Round Note For Tubing Round Minimum Internal Diameter
Can be changed according to deformation
Tubing Round Tubing Round Diameter
4 x 0.100 in | 5/8 x 0.040 in
Tubing Round Tubing Round Minimum Internal Diameter
8 in | 32 in
Tubing Square Note For Tubing Square Minimum Internal Diameter
Can be changed according to deformation
Tubing Square Tubing Square Minimum Internal Diameter
52 in
T Section Leg Down T Section Leg Down Minimum Internal Diameter
32 in
T Section Leg In T Section Leg In Minimum Internal Diameter
32 in
T Section Leg Out T Section Leg Out Minimum Internal Diameter
32 in
