A-Series 22.0mm Full Hexagon Reduced Countersunk Rivet Nut

Name: A-Series 22.0mm Full Hexagon Reduced Countersunk Rivet Nut
Brand: Ornit USA
SKU: ASE-e2278b
Price: 15.99 USD
Availability: OutOfStock

SKU:ASE-e2278b

High-quality A-Series 22.0mm Full Hexagon Rivet Nut for secure installations with steel construction & yellow zinc finish.

$15.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The A-Series 22.0mm Full Hexagon Reduced Countersunk Rivet Nut by Ornit is a versatile fastening solution designed for durable and secure installations. Made from high-quality steel with a yellow zinc plated finish, this rivet nut ensures corrosion resistance and longevity. It features a reduced countersunk head and full hexagon rivet type, providing a strong grip range of 0.5mm to 3.0 mm. With dimensions meeting SW 13.0 and SE 14.7 mm standards, this rivet nut guarantees precision and reliability. Stainless steel and aluminum options are available, along with serration style customization for specific applications.

Product Specifications

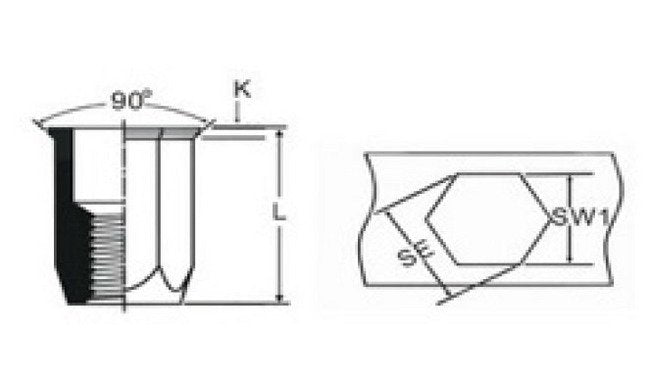

Dimensions Dimension D2

14.0 mm

Dimensions Dimension K

0.8 mm

Dimensions Dimension L

22.0 mm

Dimensions Dimension Se

14.7 mm

Dimensions Dimension Sw1

13.1 mm

Dimensions Maximum Grip Range

3.0 mm

Dimensions Minimum Grip Range

0.5 mm

Note Note

Stainless Steel & Aluminum are available. Serration style is available.

Technical Specs Brands

Ornit

Technical Specs Finish

Yellow Zinc Plated

Technical Specs Head Style

Reduced Countersunk Head (Small)

Technical Specs Material

Steel

Technical Specs Rivet Type

Full Hexagone

Technical Specs Thread Size

M10 | SW 13.0
