A-Series 9.0mm Semi-Hexagon Square Rivet Nut
A-Series 9.0mm Semi-Hexagon Square Rivet Nut
SKU:ASE-8fe222
High-quality A-Series rivet nut with 9.0mm dimension, steel material, and Yellow Zinc Plating. Ideal for industrial use.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
A-Series 9.0mm Semi-Hexagon Square Rivet Nut
$12.99
Quantity: 1
Claim Your Seller Account
A-Series 9.0mm Semi-Hexagon Square Rivet Nut
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The A-Series 9.0mm Semi-Hexagon Square Rivet Nut by Ornit is a premium steel fastening solution designed for industrial applications. With a distinctive Square Style Cylindrical Head (Flat) and Yellow Zinc Plated finish, this rivet nut offers exceptional durability and corrosion resistance. It features a Thread Size of M6 and SW 9.0, with a Minimum Grip Range of 0.5mm and a Maximum Grip Range of 2.0mm. Perfect for a wide range of materials, this rivet nut combines strength and reliability for lasting performance.

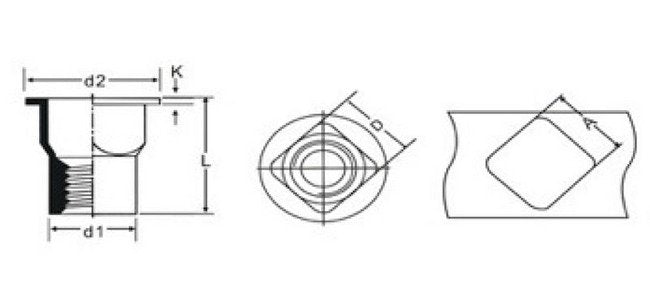

Product Specifications
Dimensions Dimension A
9.1 mm
Dimensions Dimension D
9.0 mm
Dimensions Dimension D2
13.0 mm
Dimensions Dimension K
0.8 mm
Dimensions Dimension L
15.0 mm
Dimensions Maximum Grip Range
2.0 mm
Dimensions Minimum Grip Range
0.5 mm
Note Note
Stainless Steel & Aluminum are available. Serration style is available.
Technical Specs Brands
Ornit
Technical Specs Finish
Yellow Zinc Plated
Technical Specs Head Style
Square Style Cylindrical Head (Flat)
Technical Specs Material
Steel
Technical Specs Rivet Type
Semi-Hexagone
Technical Specs Thread Size
M6 | SW 9.0
