A-Series Full Hex Rivet Nut, 11.5mm L

Name: A-Series Full Hex Rivet Nut, 11.5mm L
Brand: Ornit USA
SKU: ASE-af5fd7
Price: 12.99 USD
Availability: OutOfStock

SKU:ASE-af5fd7

Get Ornit's A-Series Full Hex Rivet Nut for secure fastening capability in steel with yellow zinc finish. Complying with government procurement standards.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The A-Series 11.5mm Dimension L Full Hexagon Cylindrical Head Rivet Nut by Ornit in steel with a yellow zinc plated finish is a reliable fastening solution. With a grip range of 0.5mm to 3.0mm, it offers durability and secure attachment. Explore stainless steel & aluminum options. Compliant with Federal/DoD procurement standards, GSA requirements, and meets FAR and DLA standards.

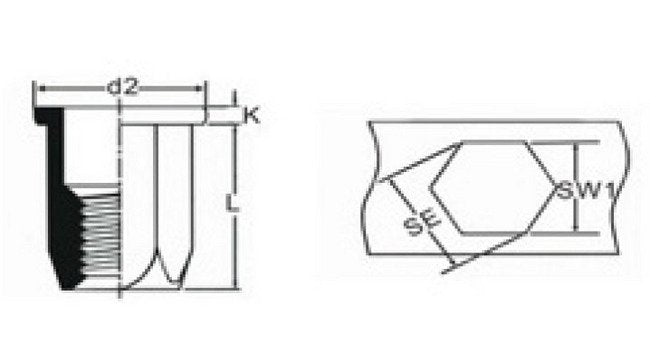

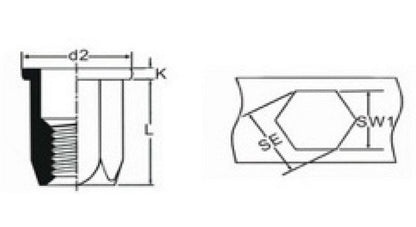

Product Specifications

Dimensions Dimension D2

9.3 mm

Dimensions Dimension K

1.0 mm

Dimensions Dimension L

11.5 mm

Dimensions Dimension Se

6.8 mm

Dimensions Dimension Sw1

6.1 mm

Dimensions Maximum Grip Range

3.0 mm

Dimensions Minimum Grip Range

0.5 mm

Note Note

Stainless Steel & Aluminum are available. Square style is available.

Technical Specs Brands

Ornit

Technical Specs Finish

Yellow Zinc Plated

Technical Specs Head Style

Cylindrical Head (Flat)

Technical Specs Material

Steel

Technical Specs Rivet Type

Full Hexagone

Technical Specs Thread Size

M4 | SW 6.0

A-Series Full Hex Rivet Nut, 11.5mm L
