A-Series Small Rivet Nut 12.0mm Semi-Hex Head

Name: A-Series Small Rivet Nut 12.0mm Semi-Hex Head
Brand: Ornit USA
SKU: ASE-dbdb6f
Price: 12.99 USD
Availability: OutOfStock

SKU:ASE-dbdb6f

High-quality A-Series Small Rivet Nut for secure fastening. Steel construction, Yellow Zinc Plated finish. Dimensions: 1.5-2.5mm grip, 12.0mm L. Stainless Steel & Aluminum options available.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

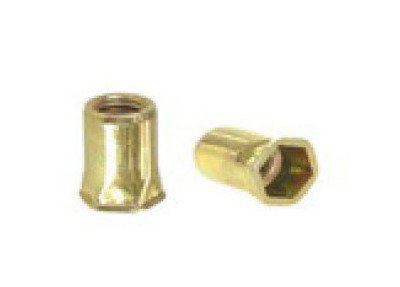

The A-Series Small Rivet Nut features a Semi-Hexagon design with a Reduced Countersunk Head for secure fastening. Made of high-quality steel with a Yellow Zinc Plated finish, it provides exceptional durability. With dimensions ranging from 1.5mm to 2.5mm grip range and precise measurements including 12.0mm in Dimension L, this rivet nut ensures reliable performance. Suitable for various applications, it offers options in Stainless Steel & Aluminum and Serration style for added versatility.

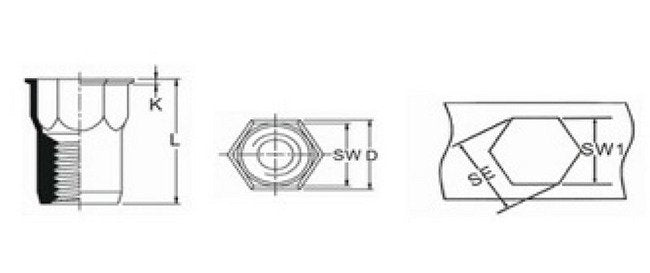

Product Specifications

Dimensions Dimension D2

8.0 mm

Dimensions Dimension K

0.8 mm

Dimensions Dimension L

12.0 mm

Dimensions Dimension Se

7.9 mm

Dimensions Dimension Sw1

7.1 mm

Dimensions Maximum Grip Range

2.5 mm

Dimensions Minimum Grip Range

1.5 mm

Note Note

Stainless Steel & Aluminum are available. Serration style is available.

Technical Specs Brands

Ornit

Technical Specs Finish

Yellow Zinc Plated

Technical Specs Head Style

Reduced Countersunk Head (Small)

Technical Specs Material

Steel

Technical Specs Rivet Type

Semi-Hexagone

Technical Specs Thread Size

M5 | SW 7.0

A-Series Small Rivet Nut 12.0mm Semi-Hex Head
