A2 DCF Grade 6 Inch Tool Steel Round Rod
A2 DCF Grade 6 Inch Tool Steel Round Rod
SKU:IND-ec3cd4
High-quality A2 DCF Grade 6 Inch Tool Steel Round Rod for industrial tooling.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
A2 DCF Grade 6 Inch Tool Steel Round Rod
$79.99
Quantity: 1
Claim Your Seller Account
A2 DCF Grade 6 Inch Tool Steel Round Rod
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The A2 DCF Grade 6 Inch Tool Steel Round Rod from Pennsylvania Steel Company offers exceptional strength and durability for industrial tooling applications. With precise 6-inch sizing and a weight of 99.046 lb per foot, this round rod is crafted from high-quality steel, ensuring reliable performance in machining and fabrication tasks. Its round profile enhances versatility, making it ideal for various tool steel applications.
Product Specifications
Applications 0
Air that is produced by oil-less compressors is used to drive pneumatic devices in surgical areas, critical care areas, nurseries, operating rooms, intensive care, post operative care, emergency rooms and hyperbaric chambers.
Champion Meets The Need 0
The need was already there: Find a reliable way to completely eliminate any oil getting from the compressor into the delivered air stream. Champion met the challenge by applying new technology, new materials and new manufacturing techniques to our compressor design. Internal moving parts in the Champion Oil-less design are protected from wear without conventional lubrication. Crankshaft and rod bearings are lubricated by exclusive sealed, solid synthetic lubricants. The result is low maintenance, high durability and pure, oil-less air!
Clean Compressed Air 0
Champion has always been at the forefront of air compressor technology. Champion V & W Series oil-less compressors are no exception. We offer 100% duty cycle, sealed antifriction bearings and filled PTFE rings. Championâs continuing program of product research and development assures that your Champion compressor includes the latest advancements in oil-less technology. We can design and build a system that meets your demand.
Features 0

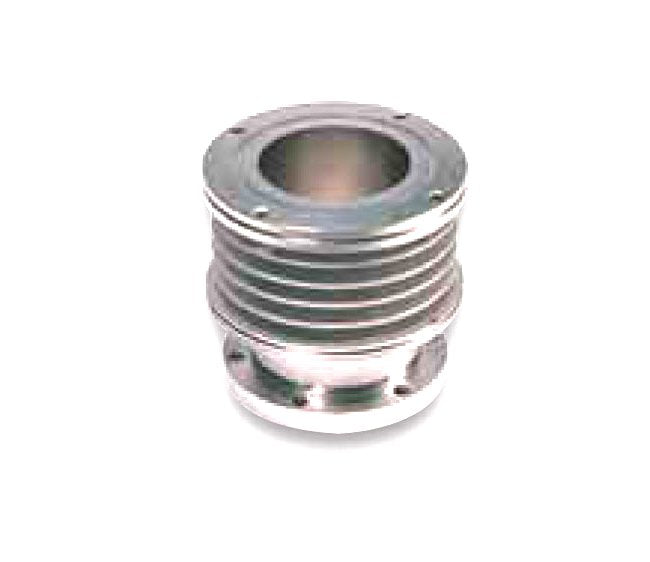

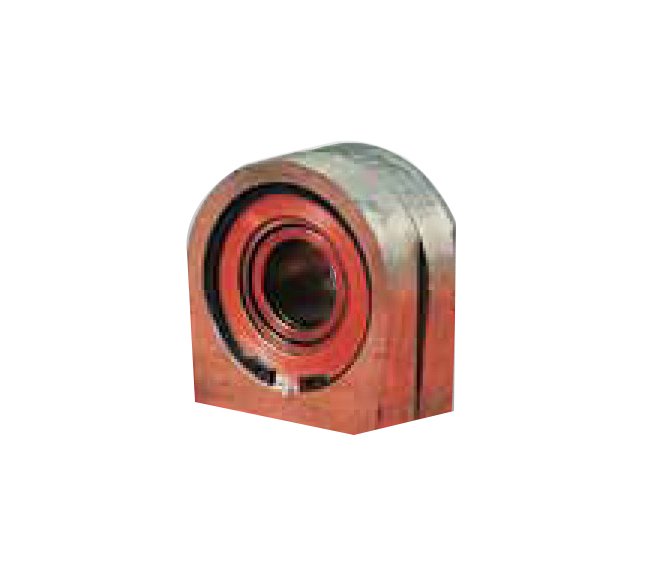

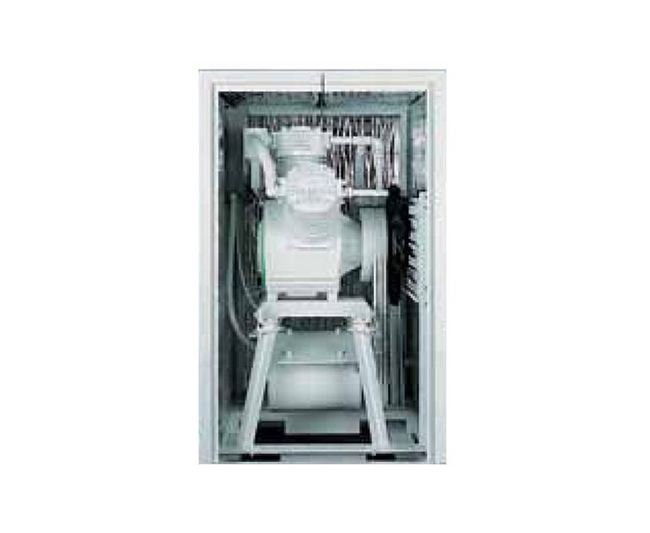

Totally Dry Crankcase Designed to maintain continuous operation. Finned to maximize efficient heat transfer. Large cover provides easy access to internal parts for service. Piston Rings Designed for oil-less compressor service with three compression rings and two guide rings. Exclusive âOâ ring bumper prevents axial movement of the guide rings and eliminates end wear. Formulated of filled PTFE material for long life and compatibility with the hardened nickel-plated, polished surface of the cylinder bore. Cast-Iron Cylinders Permanently nickel-plated and hardened to resist wear and corrosion, even under extreme operating conditions. Smooth bore, polished finish, minimizes friction and reduces heat build-up for long ring wear life.CrankshaftCantilevered crankshaft design provides superior balance and long life.Bearings Long-lasting ball bearing design; 100% oil-less. 10,000-hour life on drive set bearings, 20,000 hours on main bearings. Valves Plated valve plates and reeds of highest grade Swedish steel extend operating life and durability. 100% Duty Cycle Operation All models are rated for 100% continuous duty cycle at 100 PSIG for single-stage units and 175 PSIG for two-stage units. Spring-Isolated Base Eliminates need for special foundations. Compressor and motor are mounted on a common inner base plate. This inner base is mounted on vibro-isolation springs to absorb all vibration. Meets NFPA guidelines for medical air compressors (Over-and-under unit configuration uses elastomeric vibro-isolators). Air-Cooled Aftercooler (Optional) Oversized, with ample reserve for cooling discharged air to within 5 - 10 degrees of ambient temperature. Enables air dryer to work at its highest efficiency.
Financing Approve Payments
Finance with Approve Payments
Leading Edge Technology Delivered With Responsive Local Service

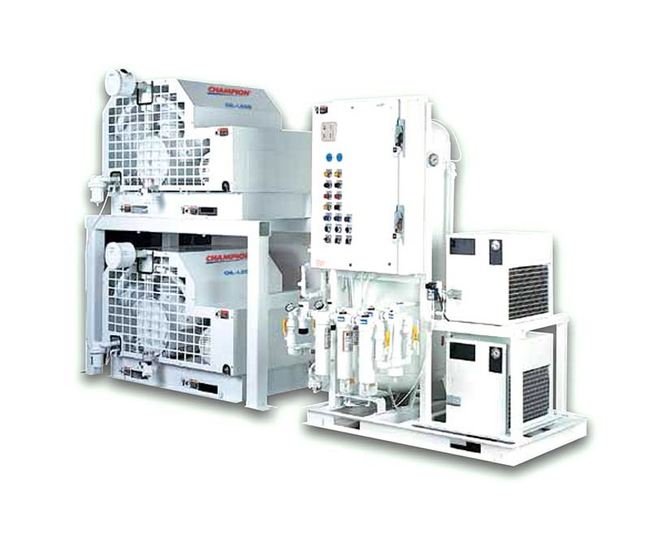

From air intake to end use, Champion can supply all the components and systems needed for your oilless compressor application. Weâre a complete systems designer, manufacturer, and supplier. When you work with Champion you get the best of both worlds. Utilizing powerful CAD systems, our application engineers will work closely with you to develop specifications and build a system to meet your needs. In turn, all installation and service is handled by locally-based representatives and distributors who are well versed in compressor technology. We maintain a worldwide sales and service network to support this effort. No one else has the experience or scope to design, build and maintain complete air management systems for medical, institutional and industrial use. Count on Champion to be your single source for oil-less air compressor technology. All Champion medical air systems meet current NFPA99 standards for health care facilities. Staying abreast of the changing regulations and requirements for medical compressed air systems is a high priority at Champion.
Note 0
All Units Built to ISO 9001 Standards.
Optional Features 0

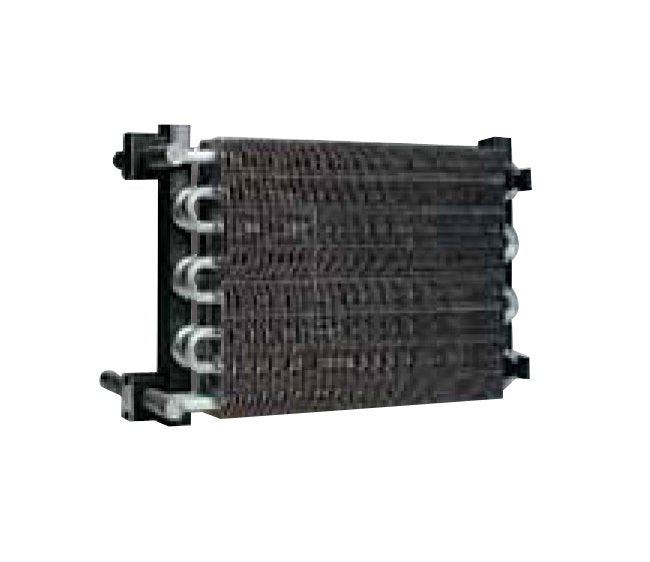

A wide selection of configurations and options allows you to customize the compressor system to your specific needs:Control Panel Fusible Disconnect Switches Automatic Tank Drain Flexible Discharge Line Vibro-IsIsolatorsVinyl-Lined or Galvanized ReceiversWater-Cooled AftercoolerRemote Intake Air Filter/SilencerHigh Temperature Shutdown/Lag Compressor AlarmAir Dryer and Bypass PipingDownstream Filter Banks and Indicator Gauges
Specifications Bore Diameter
2.56 in | 4.72 in
Specifications Delivery At 125 Psig
21.4 cfm
Specifications Delivery At 175 Psig
21.2 cfm
Specifications General Description
With the perfection of oil-less air technology by Champion, new applications are being developed everyday:Medical ComplexesLaboratoriesConsumer UseWaste Water FacilitiesOzone GenerationSteel/Coke ProcessingChemical ProcessingElectronics ProductionFood ProcessingInstrument ManufacturingPharmaceutical ProductionResearch FacilitiesPlastics ManufacturingAquariums/SCUBABeverage DispensingTheme ParksAviationChampion Medical Air Systems meet NFPA99 standard requirements for medical air compressors.NFPA was created in 1896 as a standards making body. Today, over 66,000 fire safety professionals belong to the NFPA, the worldâs largest and most influential fire safety organization.NFPA has published almost 300 codes and standards with the mission of preventing the loss of life and property. Topics include fire prevention equipment, extinguishing systems, inspection, residential and commercial dwellings, safety of flammable gases, and the very important National Electrical Code.
Specifications Height
67 in
Specifications Length
69 in
Specifications Note For Cfm Delivery
Units tested in accordance with CAGI/PEUROP acceptance test code PN2CPTC2.
Specifications Power
7.5 hp
Specifications Pump
VTR
Specifications Speed
1300 rpm
Specifications Stroke Size
1.97 in
Specifications Tank Size
120 gal
Specifications Weight
1545 lb
Specifications Width
37 1/2 in
Warranty 0
Ensuring Dependable Performance From design... to materials selection... to construction, the Champion team strives for perfection. Knowing the critical necessity for an uninterrupted supply of oil-less compressed air, Champion craftsmen take t
