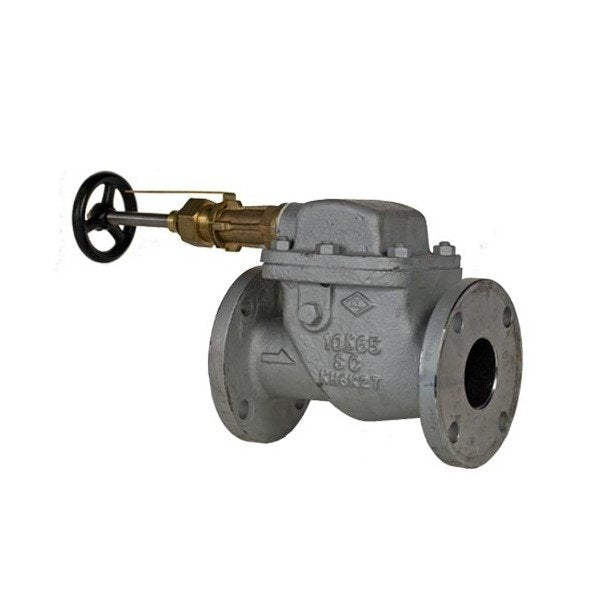

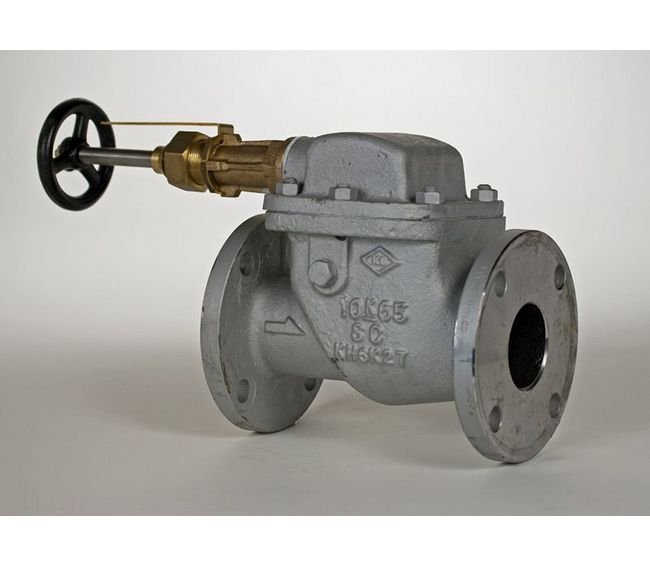

The A3059 150# Cast Steel Vertical Storm Valve is designed for durability and high performance in demanding stormwater applications. Constructed with a cast steel body, rubber seat, bronze disc, and stainless steel stem, this valve ensures reliability and longevity. With a test pressure of 5.1 kgf/cm² and precision engineering, it guarantees efficient operation under varying conditions. Compliant with ANSI standards, this valve offers superior functionality and meets stringent procurement requirements.

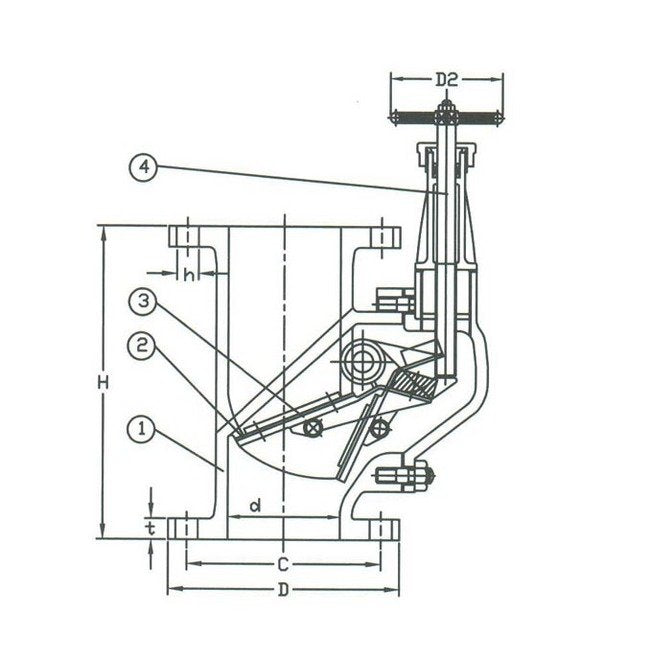

Product Specifications
Specifications Body Material
Cast Steel
Specifications C
190.5 mm | 7.500 in
Specifications D
230 mm | 9.055 in
Specifications Disc Material
Bronze
Specifications H
280 mm | 11.024 in
Specifications H1
319 mm
Specifications Number Of Holes
8
Specifications Seat Material
Rubber
Specifications Size
100
Specifications Stem Material
Stainless Steel
Specifications T
23.9 mm
Specifications Test Pressure
5.1 kgf/cm²
Specifications Weight
24.9 kg
