A3060 150# Cast Steel Angle Storm Valve - 050 Size

Name: A3060 150# Cast Steel Angle Storm Valve - 050 Size
Brand: World Wide Metric, Inc.
SKU: VAL-c81caf
Price: 399.99 USD
Availability: OutOfStock

SKU:VAL-c81caf

Reliable A3060 150# Cast Steel Angle Storm Valve - 050 Size, meets ANSI Standards.

$399.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The A3060 150# Cast Steel Angle Storm Valve is engineered for superior performance and durability in demanding industrial environments. Featuring a Cast Steel body, Bronze disc, and Stainless Steel stem, this valve ensures reliable operation under high pressures. The Rubber seat provides a tight seal, while the precision construction guarantees long-term efficiency. With a test pressure of 5.1 kgf/cm², this ANSI Storm Valve meets stringent industry standards for quality and performance, making it ideal for a wide range of applications in both consumer and institutional setups.

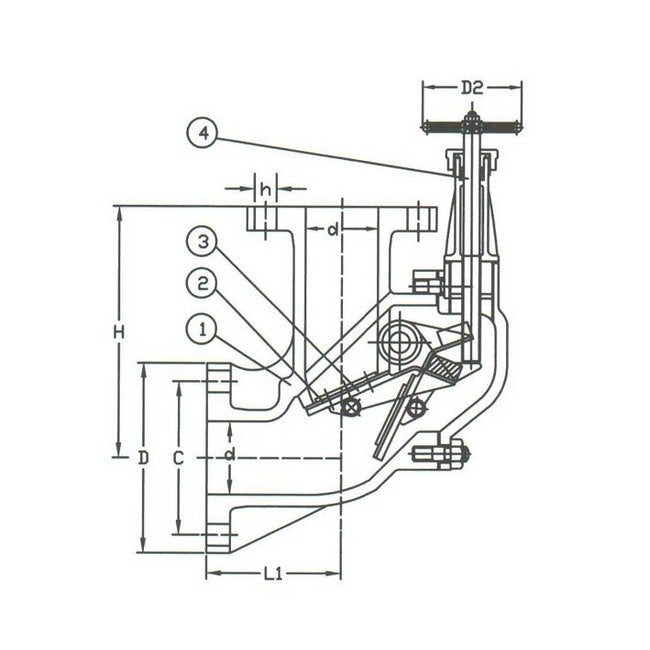

Product Specifications

Specifications Body Material

Cast Steel

Specifications C

120.7 mm | 4.752 in

Specifications D

150 mm | 5.906 in

Specifications Disc Material

Bronze

Specifications H

170 mm | 6.693 in

Specifications H1

278 mm

Specifications Number Of Holes

Specifications Seat Material

Rubber

Specifications Size

050

Specifications Stem Material

Stainless Steel

Specifications T

19.1 mm

Specifications Test Pressure

5.1 kgf/cmÂ²

Specifications Weight

14.3 kg
