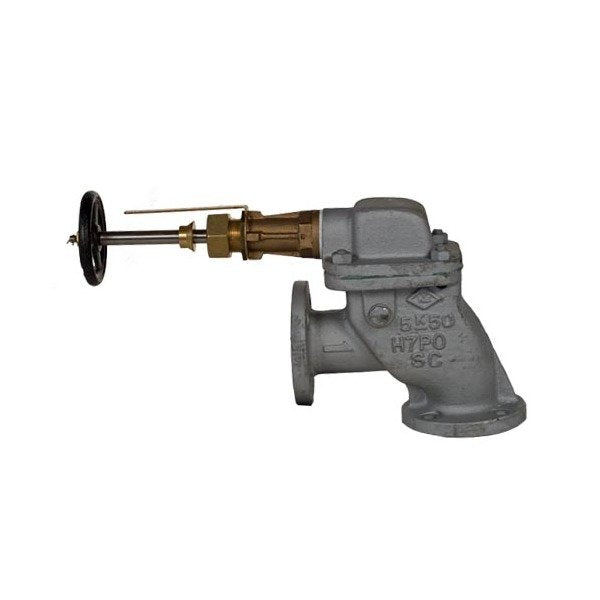

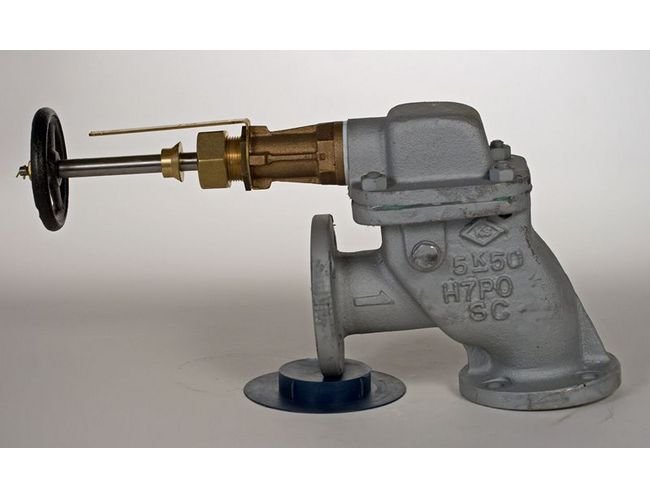

The A3060 150# Cast Steel Angle Storm Valve is a resilient solution designed for demanding environments. Constructed with a durable cast steel body, bronze disc, stainless steel stem, and rubber seat, this valve ensures long-term reliability and optimal performance. Tested to withstand pressures up to 5.1 kgf/cm², it meets stringent industry standards for safety and efficiency. With precise dimensions and quality materials, this valve guarantees seamless operation and exceptional durability for industrial applications.

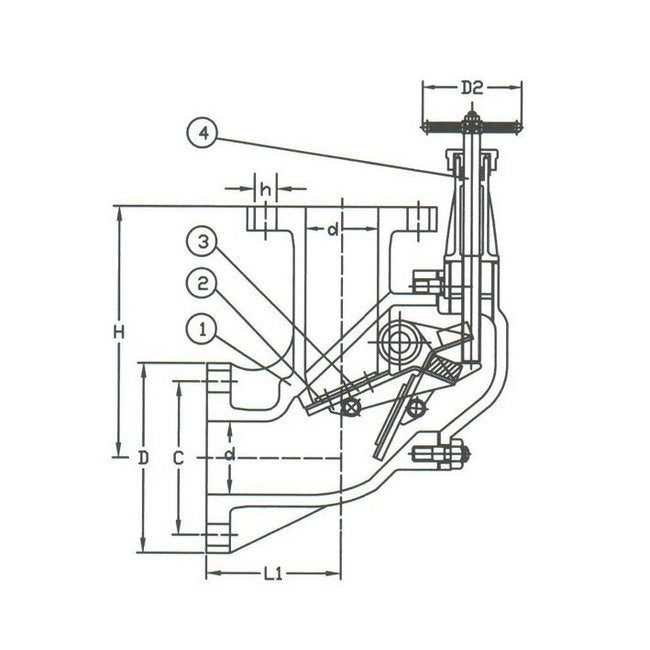

Product Specifications
Specifications Body Material
Cast Steel
Specifications C
152.4 mm | 6.0 in
Specifications D
190 mm | 7.480 in
Specifications Disc Material
Bronze
Specifications H
220 mm | 8.661 in
Specifications H1
312 mm
Specifications Number Of Holes
4
Specifications Seat Material
Rubber
Specifications Size
080
Specifications Stem Material
Stainless Steel
Specifications T
23.9 mm
Specifications Test Pressure
5.1 kgf/cm²
Specifications Weight
26.2 kg
