A3060 150# Cast Steel Angle Storm Valve - 100 Size
A3060 150# Cast Steel Angle Storm Valve - 100 Size
SKU:VAL-9d4203
Reliable A3060 150# Cast Steel Angle Storm Valve - Durable Design, ANSI Standards - Ideal for High-Pressure Applications
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
A3060 150# Cast Steel Angle Storm Valve - 100 Size
$599.99
Quantity: 1
Claim Your Seller Account
A3060 150# Cast Steel Angle Storm Valve - 100 Size
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

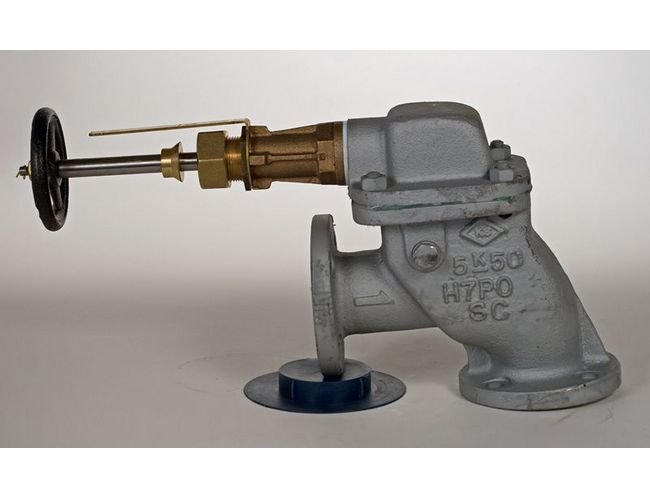

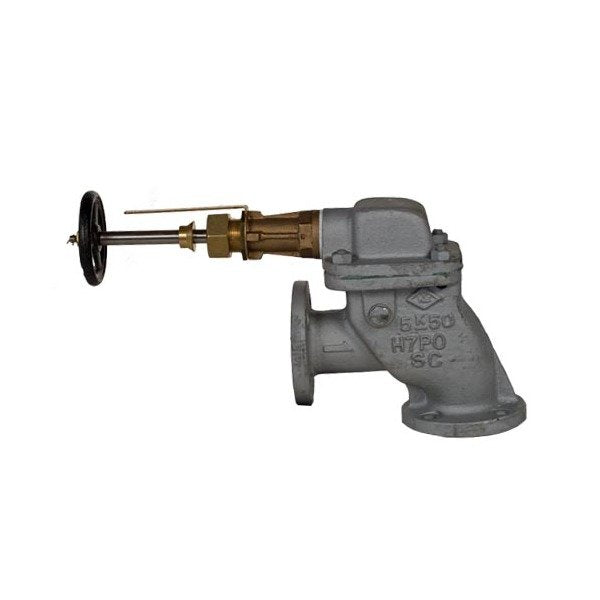

The A3060 150# Cast Steel Angle Storm Valve is engineered for reliable performance in demanding environments. Constructed with a cast steel body, rubber seat, bronze disc, and stainless steel stem, this valve ensures durability and corrosion resistance. With a test pressure of 5.1 kgf/cm² and precise dimensions meeting ANSI standards, it guarantees optimal functionality under high pressures. Trusted by industries for its quality materials and robust design, this valve is ideal for applications requiring superior strength and longevity.

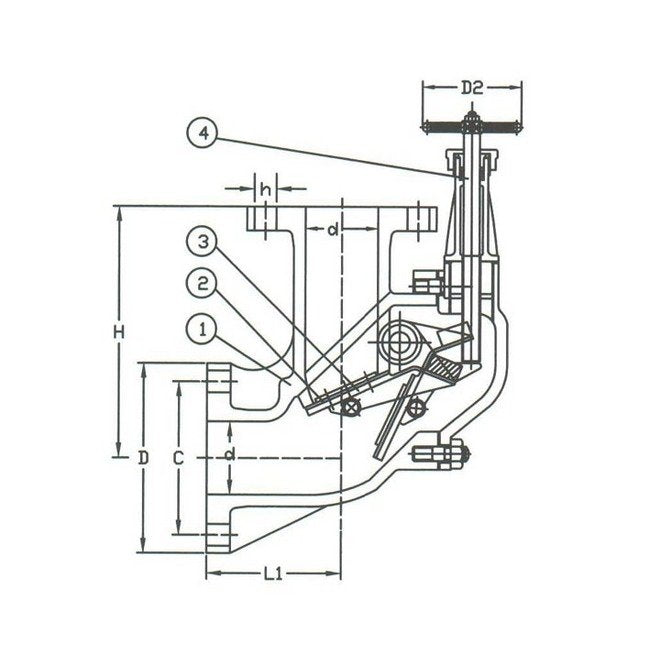

Product Specifications
Specifications Body Material
Cast Steel
Specifications C
190.5 mm | 7.500 in
Specifications D
230 mm | 9.055 in
Specifications Disc Material
Bronze
Specifications H
250 mm | 9.843 in
Specifications H1
318 mm
Specifications Number Of Holes
8
Specifications Seat Material
Rubber
Specifications Size
100
Specifications Stem Material
Stainless Steel
Specifications T
23.9 mm
Specifications Test Pressure
5.1 kgf/cm²
Specifications Weight
38.0 kg
