A3060 150# Cast Steel Angle Storm Valve - ANSI Certified
A3060 150# Cast Steel Angle Storm Valve - ANSI Certified
SKU:VAL-2cad6b
Durable A3060 150# Cast Steel Angle Storm Valve ideal for industrial and institutional applications.
Regular price
$759.99
Regular price
Sale price
$759.99
Unit price
per
Initiate Order
A3060 150# Cast Steel Angle Storm Valve - ANSI Certified
$759.99
Quantity: 1
Claim Your Seller Account
A3060 150# Cast Steel Angle Storm Valve - ANSI Certified
$759.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

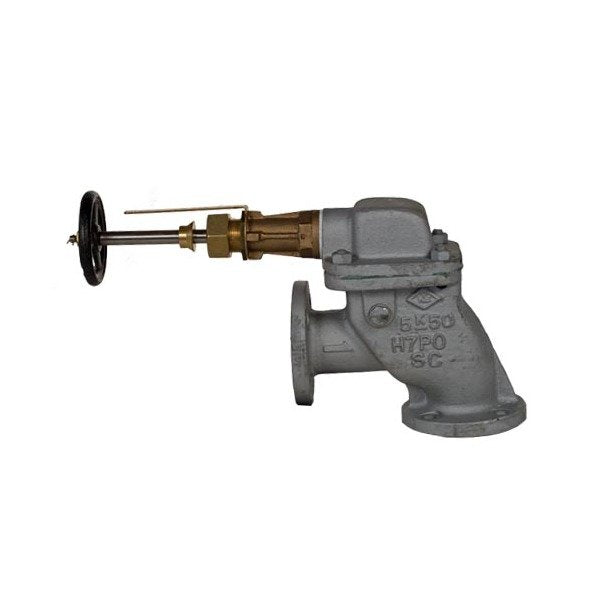

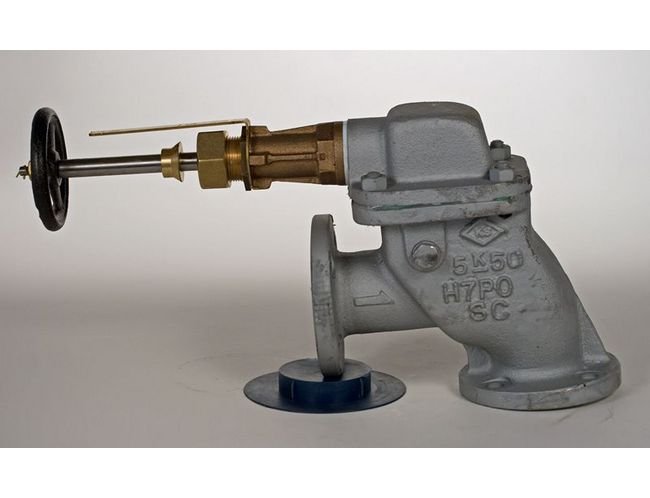

The A3060 150# Cast Steel Angle Storm Valve is a robust solution designed for demanding applications. Constructed with high-quality materials including Cast Steel body, Rubber seat, Bronze disc, and Stainless Steel stem, this valve ensures durability and efficient performance. With a size of 125 and a test pressure of 5.1 kgf/cm², it meets stringent industry standards. The valve's precise engineering provides reliable flow control, making it ideal for industrial and institutional use.

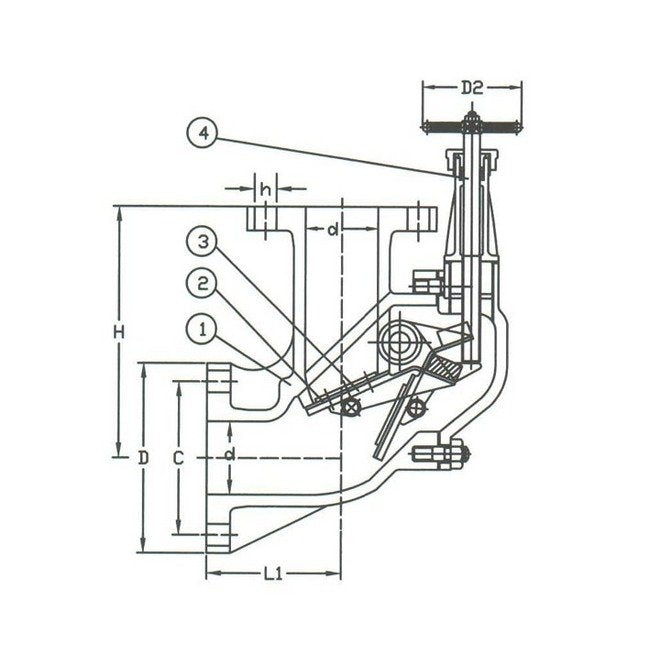

Product Specifications
Specifications Body Material
Cast Steel
Specifications C
515.9 mm | 20.311 in
Specifications D
255 mm | 10.039 in
Specifications Disc Material
Bronze
Specifications H
270 mm | 10.630 in
Specifications H1
318 mm
Specifications Number Of Holes
8
Specifications Seat Material
Rubber
Specifications Size
125
Specifications Stem Material
Stainless Steel
Specifications T
23.9 mm
Specifications Test Pressure
5.1 kgf/cm²
Specifications Weight
55.0 kg
