A3060 150# Cast Steel Angle Storm Valve - ANSI Certified

Name: A3060 150# Cast Steel Angle Storm Valve - ANSI Certified
Brand: World Wide Metric, Inc.
SKU: VAL-f40455
Price: 399.99 USD
Availability: OutOfStock

SKU:VAL-f40455

Premium A3060 150# Cast Steel Angle Storm Valve - ANSI Certified. Durable, reliable, and ANSI compliant for industrial use.

$399.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

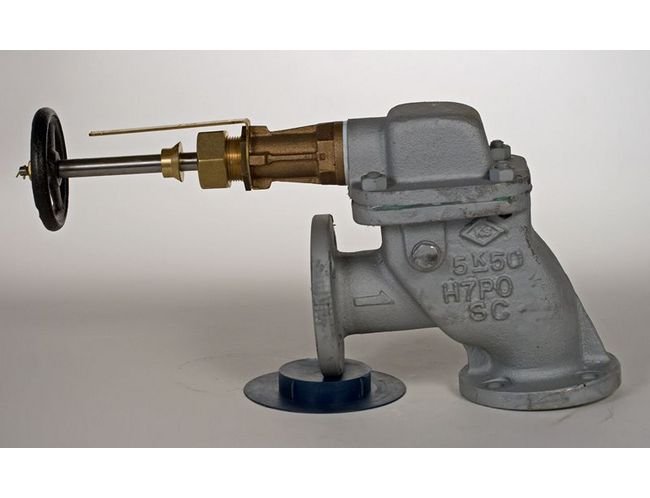

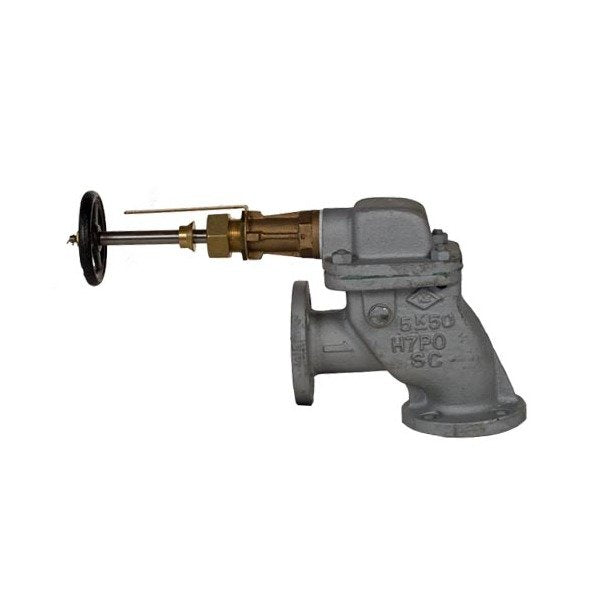

The A3060 150# Cast Steel Angle Storm Valve is a reliable solution for industrial applications requiring durability and performance. Constructed with a sturdy cast steel body, bronze disc, and stainless steel stem, this valve ensures long-term functionality in challenging environments. The rubber seat provides a tight seal, enhancing efficiency. With a test pressure of 5.1 kgf/cm² and precise dimensions meeting ANSI standards, this valve is suitable for high-pressure systems. Trust the A3060 for superior quality and compliance with industry standards.

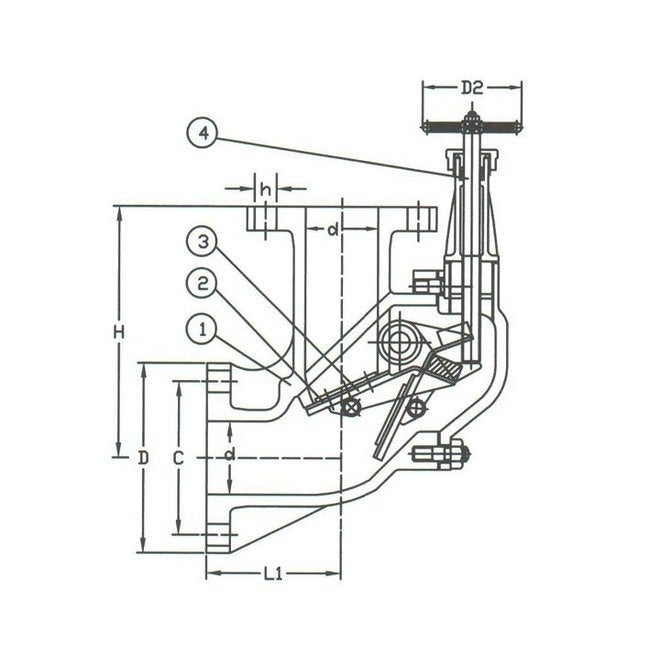

Product Specifications

Specifications Body Material

Cast Steel

Specifications C

139.7 mm | 5.500 in

Specifications D

180 mm | 7.087 in

Specifications Disc Material

Bronze

Specifications H

200 mm | 7.874 in

Specifications H1

277 mm

Specifications Number Of Holes

Specifications Seat Material

Rubber

Specifications Size

065

Specifications Stem Material

Stainless Steel

Specifications T

22.3 mm

Specifications Test Pressure

5.1 kgf/cmÂ²

Specifications Weight

20.9 kg

A3060 150# Cast Steel Angle Storm Valve - ANSI Certified
