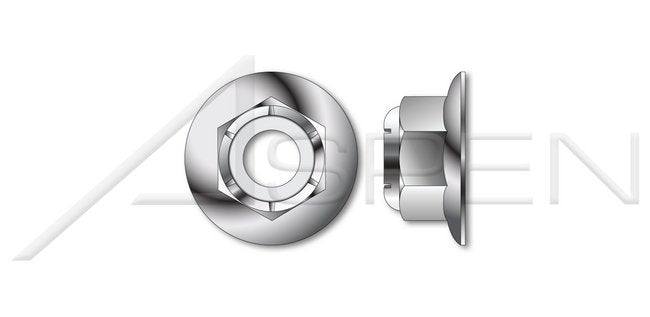

A4 Stainless Steel DIN 6926 Metric Hex Nylon Insert Flange Stop Lock Nut

Name: A4 Stainless Steel DIN 6926 Metric Hex Nylon Insert Flange Stop Lock Nut
Brand: Aspen Fasteners
SKU: NUT-0cb6fd
Price: 49.99 USD
Availability: OutOfStock

SKU:NUT-0cb6fd

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Flange Nuts are hex nuts with a flanged base that acts line a washer and distributes the clamping load over a greater surface area. They are often used in manufacturing assembly lines where operations are speeded by using a single fastener instead of a nut and washer.

Product Specifications

Additional Information

Flange on the nut acts like a washer to increase the bearing surface and distribute the load.Also known as elastic stop nuts, this self locking nut uses a nylon collar that resists turning.A4 stainless steel is functionally equivalent to 316 grade and is also known as "marine grade".Stainless steel significantly improves resistance to tarnishing or corrosion.

Specifications Coating

Uncoated

Specifications Drive Style

External Hex Drive

Specifications Industry Standards And Specifications

German Institute for Standardization (DIN 6926)

Specifications Material

Stainless Steel

Specifications Material Grade

A4 Stainless Steel

Specifications System Of Measurement

Metric

Specifications Thread Direction

Right-Hand Thread

Specifications Thread Length

Full Thread

A4 Stainless Steel DIN 6926 Metric Hex Nylon Insert Flange Stop Lock Nut
