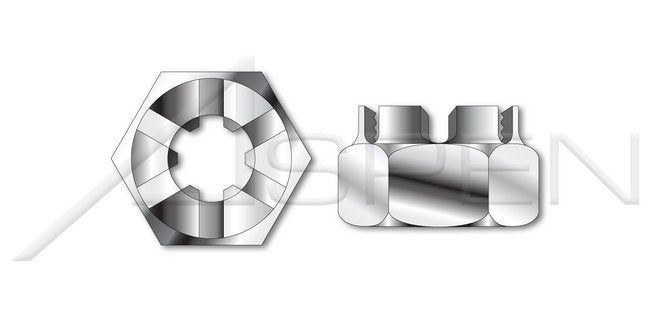

A4 Stainless Steel DIN 937 Metric Slotted Castle Thin Nut

Name: A4 Stainless Steel DIN 937 Metric Slotted Castle Thin Nut
Brand: Aspen Fasteners
SKU: NUT-d15ef8
Price: 49.99 USD
Availability: OutOfStock

SKU:NUT-d15ef8

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Hex Nuts are six-sided hexagonal shaped nuts that are the most common form of nuts.

Product Specifications

Additional Information

Also known as a castellated nut. Functionally interchangeable with slotted nuts.On castle nuts, the turret end is turned down enabling the lock pin to be wound against the turret.Lock the nut to a mated bolt by using a pin or wire threaded through the bolt and slots on the nut.A4 stainless steel is functionally equivalent to 316 grade and is also known as "marine grade".Stainless steel significantly improves resistance to tarnishing or corrosion.

Specifications Coating

Uncoated

Specifications Drive Style

External Hex Drive

Specifications Industry Standards And Specifications

German Institute for Standardization (DIN 937)

Specifications Material

Stainless Steel

Specifications Material Grade

A4 Stainless Steel

Specifications Style

Chamfered One Side

Specifications System Of Measurement

Metric

Specifications Thread Direction

Right-Hand Thread

Specifications Thread Length

Full Thread

A4 Stainless Steel DIN 937 Metric Slotted Castle Thin Nut
