Aardvark A1 Single Spring Seals - Mechanical Shaft Seal
Aardvark A1 Single Spring Seals - Mechanical Shaft Seal
SKU:MEC-0e97d3
Enhanced Aardvark A1 Single Spring Seals for high-pressure industrial applications. Bellows design, high-temperature tolerance, and customizable face options.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Aardvark A1 Single Spring Seals - Mechanical Shaft Seal
$89.99
Quantity: 1
Claim Your Seller Account
Aardvark A1 Single Spring Seals - Mechanical Shaft Seal
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

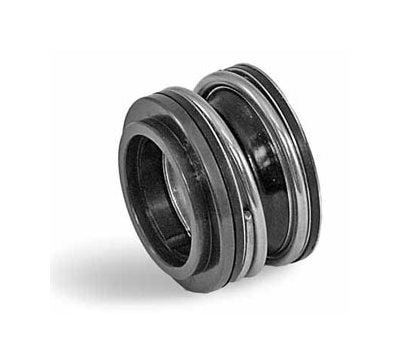

The Aardvark A1 Single Spring Seal is a robust mechanical shaft seal designed for optimal performance in industrial settings. Featuring a bellows design for enhanced alignment and bi-directional torque transmission, this seal is built to withstand high pressures up to 200 psi and temperatures up to 400ºF. The rugged single spring minimizes clogging, while the option for balanced face designs ensures reliable operation even in demanding conditions. With face materials including Antimony, Carbon, Silicon Carbide, and Tungsten Carbide, and elastomers like AFLAS, Buna, EPDM, and Viton, this seal offers exceptional durability and heat dissipation.
Product Specifications
Specifications Bore Depth
1.75 in
Specifications Elastomers
AFLAS | Buna | EPDM | Viton
Specifications Face Materials
Antimony | Carbon | Silicon Carbide | Tungsten Carbide
Specifications Manufacturer
AARDVARK
Specifications Max Pressure
200 psi
Specifications Max Temperature
400 ºF
Specifications Metallurgy
18-8SS | 316SS
Specifications Pressure Balanced
Optional
Specifications Seat Type
Cup | L Clamp | O-Ring Block | O-Ring Groove | T Clamp
Specifications Size
1-1/8 in
Specifications Working Length
1.625 in
