Aardvark A196R Recessed Impeller ANSI Pump
Aardvark A196R Recessed Impeller ANSI Pump
SKU:SLU-5103b2
High-performance Aardvark A196R Recessed Impeller ANSI Pump for reliable industrial pumping applications.
Regular price
$3,999.99
Regular price
Sale price
$3,999.99
Unit price
per
Initiate Order
Aardvark A196R Recessed Impeller ANSI Pump
$3,999.99
Quantity: 1
Claim Your Seller Account
Aardvark A196R Recessed Impeller ANSI Pump
$3,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

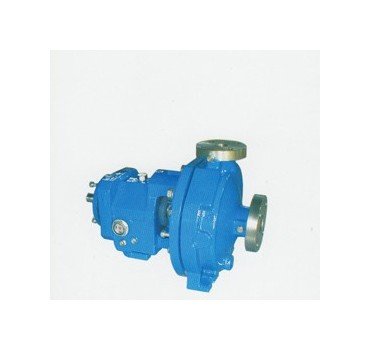

The Aardvark A196R Recessed Impeller ANSI Pump is designed to meet the rigorous demands of industrial applications. With industry-leading features such as Solids Handling Recessed VORTEX Impeller, various construction materials including 316SS and Ductile Iron, and compatibility with a wide range of mechanical seals and packing options, this pump ensures maximum reliability and performance. Ideal for horizontal slurry pumping, it offers a self-venting top centerline discharge to reduce pipe strain, large ANSI flanges for easy installation, and SKF Duplex Thrust and Radial Ball Bearings for smooth operation. Whether for consumer or institutional use, this pump is a top choice for efficiency and compliance with industry standards.
Product Specifications
Specifications Ansi Designation
A70
Specifications Coupling Type
Flex | Spacer | V-Belt
Specifications Direct Replacement For
Akay ANSIFlo, Proflo | Allis Chalmers CSO | Aurora 3550 | D1012 | Dean pH | Flowserve (Durco) Mark 3 | Goulds 3196 | Griswold 811 | HEC | IDP | Ingersoll-Rand (I-R) HOC | Labour (Taber) LVA, TFA, LVB | Magnatex 3575 | Peerless 8196 | Rotech | Smart Turner | Sulzer CPT | Summit 2196 | Truflo DAP | Tuff Pump | Worthington D1011
Specifications Discharge
3 in
Specifications Driver
AC Motor | Air Motor | DC Motor | Engine | Hydraulic Motor | Steam Turbine
Specifications Material
316SS | Carbon Steel | CD4MCu | Ductile Iron
Specifications Maximum Power
125 hp
Specifications Motor Enclosure
Explosion Proof | Hostile Duty | IEEE-841 | IP54 | IP55 | IP67 | Stainless Steel Wash Down | TEFC
Specifications Motor Speed
1000 rpm | 1200 rpm | 1500 rpm | 1800 rpm | 3000 rpm | 3600 rpm
Specifications Mount
MTA
Specifications Phase
1 | 3 | DC
Specifications Port Type
Flange
Specifications Ship
Stock
Specifications Size
4 x 3 x 7
Specifications Suction
4 in
Specifications Type
Recessed Impeller Pump
Specifications Voltage
115 V | 180 V | 190 V | 208 V | 230 V | 380 V | 460 V | 575 V | 90 V | 995 V
Specifications Weight
220 lb
