Aardvark A196R Recessed Impeller Pump
Aardvark A196R Recessed Impeller Pump
SKU:SLU-8ad9ed
Reliable A196R Recessed Impeller Pump meeting ANSI B73.1 standards, designed for horizontal slurry pumping applications.
Regular price
$2,750.00
Regular price
Sale price
$2,750.00
Unit price
per
Initiate Order
Aardvark A196R Recessed Impeller Pump
$2,750.00
Quantity: 1
Claim Your Seller Account
Aardvark A196R Recessed Impeller Pump
$2,750.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

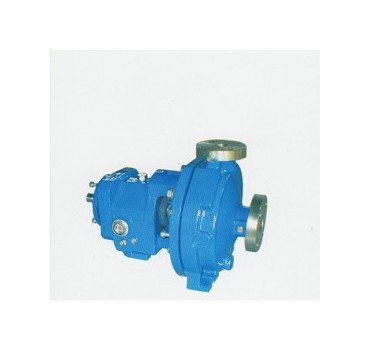

The Aardvark A196R Recessed Impeller Pump delivers unmatched reliability and industry-leading performance. Featuring a rugged construction with materials like Ductile Iron, Carbon Steel, and 316SS, this pump ensures durability. It boasts a self-venting top centerline discharge to reduce pipe strain, ANSI-682 mechanical seal compatibility, and SKF Duplex Thrust and Radial Ball Bearings for optimal operation. With compliance to ANSI B73.1 standards and the ability to replace multiple pump models, the A196R is a versatile choice for horizontal slurry pumping applications.
Product Specifications
Specifications Ansi Designation
A20
Specifications Coupling Type
Flex | Spacer | V-Belt
Specifications Direct Replacement For
Akay ANSIFlo, Proflo | Allis Chalmers CSO | Aurora 3550 | D1012 | Dean pH | Flowserve (Durco) Mark 3 | Goulds 3196 | Griswold 811 | HEC | IDP | Ingersoll-Rand (I-R) HOC | Labour (Taber) LVA, TFA, LVB | Magnatex 3575 | Peerless 8196 | Rotech | Smart Turner | Sulzer CPT | Summit 2196 | Truflo DAP | Tuff Pump | Worthington D1011
Specifications Discharge
1.5 in
Specifications Driver
AC Motor | Air Motor | DC Motor | Engine | Hydraulic Motor | Steam Turbine
Specifications Material
316SS | Carbon Steel | CD4MCu | Ductile Iron
Specifications Maximum Power
125 hp
Specifications Motor Enclosure
Explosion Proof | Hostile Duty | IEEE-841 | IP54 | IP55 | IP67 | Stainless Steel Wash Down | TEFC
Specifications Motor Speed
1000 rpm | 1200 rpm | 1500 rpm | 1800 rpm | 3000 rpm | 3600 rpm | 750 rpm | 900 rpm
Specifications Mount
MTA
Specifications Phase
1 | 3 | DC
Specifications Port Type
Flange
Specifications Ship
Stock
Specifications Size
3 x 1.5 x 13 | LF
Specifications Suction
3 in
Specifications Type
Recessed Impeller Pump
Specifications Voltage
190 V | 208 V | 230 V | 380 V | 460 V | 575 V | 995 V
Specifications Weight
245 lb
