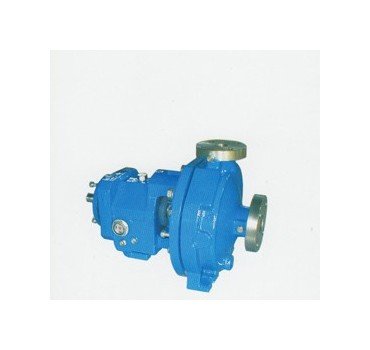

Aardvark A196R Recessed Impeller Pump
Aardvark A196R Recessed Impeller Pump
SKU:SLU-280636
Reliable ANSI standard Aardvark A196R Recessed Impeller Pump for efficient fluid handling in industrial applications.
Regular price
$9,999.00
Regular price
Sale price
$9,999.00
Unit price
per
Initiate Order
Aardvark A196R Recessed Impeller Pump
$9,999.00
Quantity: 1
Claim Your Seller Account
Aardvark A196R Recessed Impeller Pump
$9,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Aardvark A196R Recessed Impeller Pump is a reliable industrial pump that meets ANSI standards, featuring a Solids Handling Recessed VORTEX Impeller and construction options in materials like 316SS, Carbon Steel, and more. With a 300+ psi Casing, Self Venting Top Centerline Discharge, and compatibility with various mechanical seals and packing types, it offers versatile and efficient fluid handling for a range of applications. Experience optimal performance and durability with this pump that boasts interchangeable parts with ANSI B73.1 pumps, ensuring seamless integration and maintenance in industrial settings.
Product Specifications
Specifications Ansi Designation
A120
Specifications Coupling Type
Flex | Spacer | V-Belt
Specifications Direct Replacement For
Akay ANSIFlo, Proflo | Allis Chalmers CSO | Aurora 3550 | D1012 | Dean pH | Flowserve (Durco) Mark 3 | Goulds 3196 | Griswold 811 | HEC | IDP | Ingersoll-Rand (I-R) HOC | Labour (Taber) LVA, TFA, LVB | Magnatex 3575 | Peerless 8196 | Rotech | Smart Turner | Sulzer CPT | Summit 2196 | Truflo DAP | Tuff Pump | Worthington D1011
Specifications Discharge
8 in
Specifications Driver
AC Motor | Air Motor | DC Motor | Engine | Hydraulic Motor | Steam Turbine
Specifications Material
316SS | Carbon Steel | CD4MCu | Ductile Iron
Specifications Maximum Power
250 hp
Specifications Motor Enclosure
Explosion Proof | Hostile Duty | IEEE-841 | IP54 | IP55 | IP67 | Stainless Steel Wash Down | TEFC
Specifications Motor Speed
1000 rpm | 1200 rpm | 1500 rpm | 1800 rpm | 750 rpm | 900 rpm
Specifications Mount
XLTA
Specifications Phase
1 | 3 | DC
Specifications Port Type
Flange
Specifications Ship
Stock
Specifications Size
10 x 8 x 15 | G
Specifications Suction
10 in
Specifications Type
Recessed Impeller Pump
Specifications Voltage
190 V | 208 V | 230 V | 380 V | 460 V | 575 V | 995 V
Specifications Weight
710 lb
