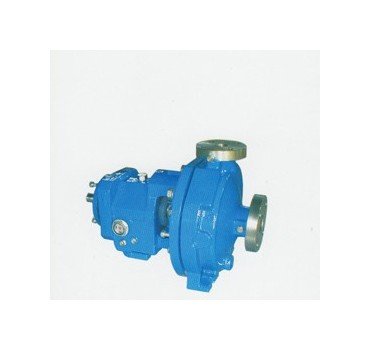

Aardvark A196R Recessed Impeller Pump
Aardvark A196R Recessed Impeller Pump
SKU:SLU-d2fa1b
High-performance Aardvark A196R Recessed Impeller Pump with Vortex Impeller for reliable horizontal slurry pumping.
Regular price
$2,649.99
Regular price
Sale price
$2,649.99
Unit price
per
Initiate Order
Aardvark A196R Recessed Impeller Pump
$2,649.99
Quantity: 1
Claim Your Seller Account
Aardvark A196R Recessed Impeller Pump
$2,649.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Aardvark A196R Recessed Impeller Pump sets the standard for reliability and performance in the industry. Built with high-quality materials like 316SS, Carbon Steel, and CD4MCu, this pump features a Solids Handling Recessed VORTEX Impeller for efficient operation. With a 300+ psi casing and self-venting top centerline discharge, it reduces pipe strain and moments, ensuring seamless functionality. Designed for compatibility with various mechanical seals, packings, and bearing types, this pump is a versatile and robust solution for horizontal slurry pumping applications.
Product Specifications
Specifications Ansi Designation
A20
Specifications Coupling Type
Flex | Spacer | V-Belt
Specifications Direct Replacement For
Akay ANSIFlo, Proflo | Allis Chalmers CSO | Aurora 3550 | D1012 | Dean pH | Flowserve (Durco) Mark 3 | Goulds 3196 | Griswold 811 | HEC | IDP | Ingersoll-Rand (I-R) HOC | Labour (Taber) LVA, TFA, LVB | Magnatex 3575 | Peerless 8196 | Rotech | Smart Turner | Sulzer CPT | Summit 2196 | Truflo DAP | Tuff Pump | Worthington D1011
Specifications Discharge
1.5 in
Specifications Driver
AC Motor | Air Motor | DC Motor | Engine | Hydraulic Motor | Steam Turbine
Specifications Material
316SS | Carbon Steel | CD4MCu | Ductile Iron
Specifications Maximum Power
125 hp
Specifications Motor Enclosure
Explosion Proof | Hostile Duty | IEEE-841 | IP54 | IP55 | IP67 | Stainless Steel Wash Down | TEFC
Specifications Motor Speed
1000 rpm | 1200 rpm | 1500 rpm | 1800 rpm | 3000 rpm | 3600 rpm | 750 rpm | 900 rpm
Specifications Mount
MTA
Specifications Phase
1 | 3 | DC
Specifications Port Type
Flange
Specifications Ship
Stock
Specifications Size
3 x 1.5 x 13
Specifications Suction
3 in
Specifications Type
Recessed Impeller Pump
Specifications Voltage
190 V | 208 V | 230 V | 380 V | 460 V | 575 V | 995 V
Specifications Weight
245 lb
