Aardvark A196R Recessed Impeller Pump
Aardvark A196R Recessed Impeller Pump
SKU:SLU-cae682
The Aardvark A196R Pump: ANSI-compliant, durable materials, self-venting design, versatile motors.
Regular price
$3,499.99
Regular price
Sale price
$3,499.99
Unit price
per
Initiate Order
Aardvark A196R Recessed Impeller Pump
$3,499.99
Quantity: 1
Claim Your Seller Account
Aardvark A196R Recessed Impeller Pump
$3,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

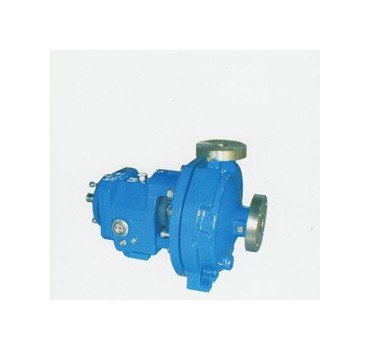

The Aardvark A196R Recessed Impeller Pump is a top-of-the-line solution designed to meet ANSI standards, ensuring maximum reliability and efficiency. With a robust construction featuring materials like 316SS, Carbon Steel, and Ductile Iron, this pump can handle tough environments with ease. Equipped with a Self-Venting Top Centerline Discharge and ANSI Seal Flush Plans, it minimizes pipe strain and provides optimal sealing. The pump also offers versatility in motor options, including AC Motor, Air Motor, and more, making it a reliable choice for various applications.
Product Specifications
Specifications Ansi Designation
A50
Specifications Coupling Type
Flex | Spacer | V-Belt
Specifications Direct Replacement For
Akay ANSIFlo, Proflo | Allis Chalmers CSO | Aurora 3550 | D1012 | Dean pH | Flowserve (Durco) Mark 3 | Goulds 3196 | Griswold 811 | HEC | IDP | Ingersoll-Rand (I-R) HOC | Labour (Taber) LVA, TFA, LVB | Magnatex 3575 | Peerless 8196 | Rotech | Smart Turner | Sulzer CPT | Summit 2196 | Truflo DAP | Tuff Pump | Worthington D1011
Specifications Discharge
1.5 in
Specifications Driver
AC Motor | Air Motor | DC Motor | Engine | Hydraulic Motor | Steam Turbine
Specifications Material
316SS | Carbon Steel | CD4MCu | Ductile Iron
Specifications Maximum Power
125 hp
Specifications Motor Enclosure
Explosion Proof | Hostile Duty | IEEE-841 | IP54 | IP55 | IP67 | Stainless Steel Wash Down | TEFC
Specifications Motor Speed
1000 rpm | 1200 rpm | 1500 rpm | 1800 rpm | 3000 rpm | 3600 rpm
Specifications Mount
MTA
Specifications Phase
1 | 3 | DC
Specifications Port Type
Flange
Specifications Ship
Stock
Specifications Size
3 x 1.5 x 10
Specifications Suction
3 in
Specifications Type
Recessed Impeller Pump
Specifications Voltage
115 V | 180 V | 190 V | 208 V | 230 V | 380 V | 460 V | 575 V | 90 V | 995 V
Specifications Weight
220 lb
