Aardvark A196R Recessed Impeller Pump - ANSI Certified
Aardvark A196R Recessed Impeller Pump - ANSI Certified
SKU:SLU-e11771
High-performance ANSI-certified Aardvark A196R Recessed Impeller Pump for reliable and efficient slurry handling.
Regular price
$5,399.99
Regular price
Sale price
$5,399.99
Unit price
per
Initiate Order
Aardvark A196R Recessed Impeller Pump - ANSI Certified
$5,399.99
Quantity: 1
Claim Your Seller Account
Aardvark A196R Recessed Impeller Pump - ANSI Certified
$5,399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

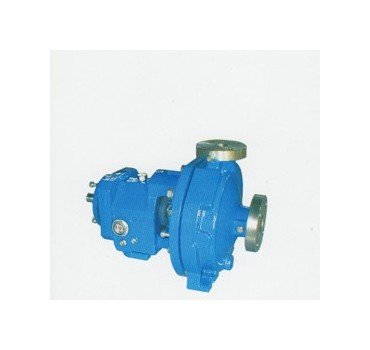

The Aardvark A196R Recessed Impeller Pump is a high-performance solution that meets ANSI standards, ensuring maximum reliability and compatibility with various industrial applications. Constructed with Ductile Iron, Carbon Steel, 316SS, CD4MCu, Alloy/Carpenter 20, & Titanium, it offers exceptional durability and corrosion resistance. With a 300+ psi Casing, self-venting top centerline discharge, and ANSI-682 mechanical seal options, this pump excels in handling demanding slurry conditions. The large SAE 4140 Shaft, SKF Duplex Thrust, and Radial Ball Bearings provide robust support, while the options for different motors and driver types offer versatile installation possibilities.
Product Specifications
Specifications Ansi Designation
A100
Specifications Coupling Type
Flex | Spacer | V-Belt
Specifications Direct Replacement For
Akay ANSIFlo, Proflo | Allis Chalmers CSO | Aurora 3550 | D1012 | Dean pH | Flowserve (Durco) Mark 3 | Goulds 3196 | Griswold 811 | HEC | IDP | Ingersoll-Rand (I-R) HOC | Labour (Taber) LVA, TFA, LVB | Magnatex 3575 | Peerless 8196 | Rotech | Smart Turner | Sulzer CPT | Summit 2196 | Truflo DAP | Tuff Pump | Worthington D1011
Specifications Discharge
8 in
Specifications Driver
AC Motor | Air Motor | DC Motor | Engine | Hydraulic Motor | Steam Turbine
Specifications Material
316SS | Carbon Steel | CD4MCu | Ductile Iron
Specifications Maximum Power
250 hp
Specifications Motor Enclosure
Explosion Proof | Hostile Duty | IEEE-841 | IP54 | IP55 | IP67 | Stainless Steel Wash Down | TEFC
Specifications Motor Speed
1000 rpm | 1200 rpm | 1500 rpm | 1800 rpm | 750 rpm | 900 rpm
Specifications Mount
XLTA
Specifications Phase
1 | 3 | DC
Specifications Port Type
Flange
Specifications Ship
Stock
Specifications Size
10 x 8 x 13
Specifications Suction
10 in
Specifications Type
Recessed Impeller Pump
Specifications Voltage
190 V | 208 V | 230 V | 380 V | 460 V | 575 V | 995 V
Specifications Weight
670 lb
