Aardvark A196R Recessed Impeller Pump - High-Performance Solution
Aardvark A196R Recessed Impeller Pump - High-Performance Solution
SKU:SLU-204e41
Experience industry-leading reliability with the Aardvark A196R Pump. Robust construction, high compatibility, and superior performance.
Regular price
$2,450.00
Regular price
Sale price
$2,450.00
Unit price
per
Initiate Order
Aardvark A196R Recessed Impeller Pump - High-Performance Solution
$2,450.00
Quantity: 1
Claim Your Seller Account
Aardvark A196R Recessed Impeller Pump - High-Performance Solution
$2,450.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

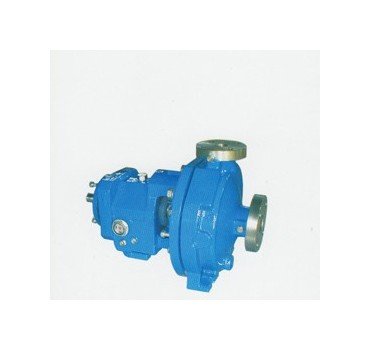

The Aardvark A196R Recessed Impeller Pump is a top-of-the-line solution for demanding applications. Built to exceed industry standards, this pump features a robust construction with materials such as Ductile Iron, Carbon Steel, and 316SS, ensuring maximum reliability. The self-venting top centerline discharge reduces pipe strain, while the large SAE 4140 shaft with alloy sleeve guarantees optimal performance. With compatibility with various motors and efficient lubrication options, this pump is a versatile and durable choice for horizontal slurry pumping needs.
Product Specifications
Specifications Ansi Designation
A20
Specifications Coupling Type
Flex | Spacer | V-Belt
Specifications Direct Replacement For
Akay ANSIFlo, Proflo | Allis Chalmers CSO | Aurora 3550 | D1012 | Dean pH | Flowserve (Durco) Mark 3 | Goulds 3196 | Griswold 811 | HEC | IDP | Ingersoll-Rand (I-R) HOC | Labour (Taber) LVA, TFA, LVB | Magnatex 3575 | Peerless 8196 | Rotech | Smart Turner | Sulzer CPT | Summit 2196 | Truflo DAP | Tuff Pump | Worthington D1011
Specifications Discharge
1.5 in
Specifications Driver
AC Motor | Air Motor | DC Motor | Engine | Hydraulic Motor | Steam Turbine
Specifications Material
316SS | Carbon Steel | CD4MCu | Ductile Iron
Specifications Maximum Power
200 hp
Specifications Motor Enclosure
Explosion Proof | Hostile Duty | IEEE-841 | IP54 | IP55 | IP67 | Stainless Steel Wash Down | TEFC
Specifications Motor Speed
1000 rpm | 1200 rpm | 1500 rpm | 1800 rpm | 3000 rpm | 3600 rpm | 750 rpm | 900 rpm
Specifications Mount
LTA
Specifications Phase
1 | 3 | DC
Specifications Port Type
Flange
Specifications Ship
Stock
Specifications Size
3 x 1.5 x 13
Specifications Suction
3 in
Specifications Type
Recessed Impeller Pump
Specifications Voltage
190 V | 208 V | 230 V | 380 V | 460 V | 575 V | 995 V
Specifications Weight
265 lb
