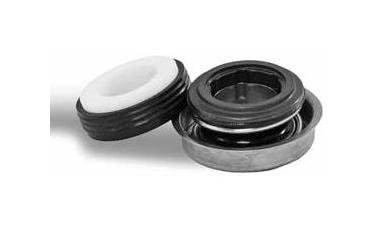

Aardvark A6 5/8 in Single Spring Mechanical Seal
Aardvark A6 5/8 in Single Spring Mechanical Seal
SKU:MEC-a2623e
Enhance pump performance with Aardvark A6 Single Spring Seal. Compact, durable, and easy to install, perfect for various pumps.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Aardvark A6 5/8 in Single Spring Mechanical Seal
$29.99
Quantity: 1
Claim Your Seller Account
Aardvark A6 5/8 in Single Spring Mechanical Seal
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Aardvark A6 Single Spring Seal is designed for optimal performance and durability. This mechanical seal features a single spring and elastomer bellows for maximum flexibility. With a compact design and full convolution bellows, it ensures easy installation and compatibility with various pumps. Manufactured by AARDVARK, this seal boasts a working length of 0.718 in, max pressure of 75 psi, and can withstand temperatures up to 400°F. The face materials include Carbon and Silicon Carbide, while elastomers like Buna, EPDM, and Viton provide excellent sealing properties. This seal is pressure balanced and offers seat types such as Cup, L Clamp, O-Ring Block, O-Ring Groove, and T Clamp.
Product Specifications
Specifications Bore Depth
1.375 in
Specifications Elastomers
Buna | EPDM | Viton
Specifications Face Materials
Carbon | Silicon Carbide
Specifications Manufacturer
AARDVARK
Specifications Max Pressure
75 psi
Specifications Max Temperature
400 ºF
Specifications Metallurgy
18-8SS | 316SS
Specifications Pressure Balanced
N
Specifications Seat Type
Cup | L Clamp | O-Ring Block | O-Ring Groove | T Clamp
Specifications Size
5/8 in
Specifications Working Length
0.718 in
