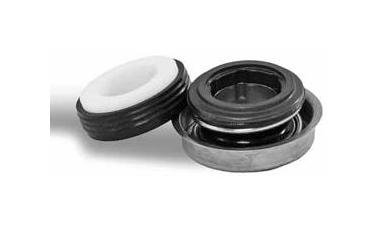

Aardvark A6 Single Spring Mechanical Seal
Aardvark A6 Single Spring Mechanical Seal
SKU:MEC-558155
Reliable Aardvark A6 Single Spring Seal for maximum flexibility and easy installation. Ideal for commercial and domestic pumps.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Aardvark A6 Single Spring Mechanical Seal
$39.99
Quantity: 1
Claim Your Seller Account
Aardvark A6 Single Spring Mechanical Seal
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Aardvark A6 Single Spring Mechanical Seal is a high-performance sealing solution designed for reliability and efficiency. Featuring a single spring design and elastomer bellows, this compact seal offers maximum flexibility and is pre-assembled for easy installation. With a full convolution bellows construction, it is suitable for a wide range of commercial and domestic pumps. Manufactured by AARDVARK, this seal boasts specifications including a 5/8 inch size, a bore depth of 1.187 inches, a working length of 0.718 inches, and can withstand up to 75 psi pressure and 400 °F temperature. The face materials consist of Carbon and Silicon Carbide, while elastomers include Buna, EPDM, and Viton. The metallurgy options are 18-8SS and 316SS, with multiple seat types available for various applications.
Product Specifications
Specifications Bore Depth
1.187 in
Specifications Elastomers
Buna | EPDM | Viton
Specifications Face Materials
Carbon | Silicon Carbide
Specifications Manufacturer
AARDVARK
Specifications Max Pressure
75 psi
Specifications Max Temperature
400 ºF
Specifications Metallurgy
18-8SS | 316SS
Specifications Pressure Balanced
N
Specifications Seat Type
Cup | L Clamp | O-Ring Block | O-Ring Groove | T Clamp
Specifications Size
5/8 in
Specifications Working Length
0.718 in
