Aardvark A6 Single Spring Mechanical Seals
Aardvark A6 Single Spring Mechanical Seals
SKU:MEC-1e5af2
Reliable Aardvark A6 Single Spring Seals for commercial and domestic pumps. Single spring design for flexibility and durability. Easy to install and compact.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Aardvark A6 Single Spring Mechanical Seals
$49.99
Quantity: 1
Claim Your Seller Account
Aardvark A6 Single Spring Mechanical Seals
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

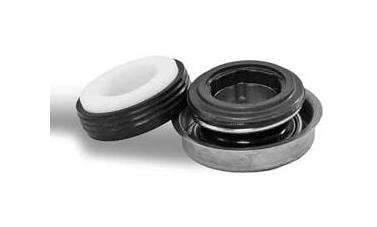

The Aardvark A6 Single Spring Mechanical Seals are precision-engineered to deliver reliable sealing performance in a wide range of pump applications. Featuring a single spring design and elastomer bellows, these seals offer exceptional flexibility and durability. With a compact size and full convolution bellows, they ensure easy installation and efficient operation. Manufactured by AARDVARK, these seals meet stringent industry standards, including a maximum pressure of 75 psi and a temperature rating of up to 400 °F. The face materials include Carbon and Silicon Carbide, while elastomer options include Buna, EPDM, and Viton. The metallurgy comprises 18-8SS and 316SS for enhanced strength and corrosion resistance.
Product Specifications
Specifications Bore Depth
1.187 in
Specifications Elastomers
Buna | EPDM | Viton
Specifications Face Materials
Carbon | Silicon Carbide
Specifications Manufacturer
AARDVARK
Specifications Max Pressure
75 psi
Specifications Max Temperature
400 ºF
Specifications Metallurgy
18-8SS | 316SS
Specifications Pressure Balanced
N
Specifications Seat Type
Cup | L Clamp | O-Ring Block | O-Ring Groove | T Clamp
Specifications Size
5/8 in
Specifications Working Length
0.718 in
