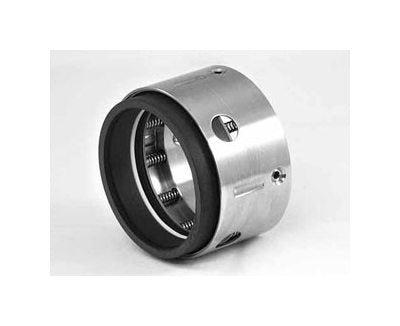

Aardvark A6 Single Spring Mechanical Seals - 1-inch, Carbon/Silicon Carbide Faces

Aardvark A6 Single Spring Mechanical Seals - 1-inch, Carbon/Silicon Carbide Faces

MEC-aec441

Aardvark A6 Single Spring Mechanical Seals for commercial and domestic pumps, 1-inch size, Carbon/Silicon Carbide faces, 75 psi, 400°F.

$64.99
$64.99
Sale

Initiate Order

Aardvark A6 Single Spring Mechanical Seals - 1-inch, Carbon/Silicon Carbide Faces

Aardvark A6 Single Spring Mechanical Seals - 1-inch, Carbon/Silicon Carbide Faces

$64.99

Quantity: 1

Claim Your Seller Account

Aardvark A6 Single Spring Mechanical Seals - 1-inch, Carbon/Silicon Carbide Faces

Aardvark A6 Single Spring Mechanical Seals - 1-inch, Carbon/Silicon Carbide Faces

$64.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Aardvark A6 Single Spring Mechanical Seals are expertly designed with a full convolution rubber bellows that offers unmatched flexibility to compensate for shaft movement. This seal boasts a coil spring for consistent face loading and an anti-rotation dent and groove that restricts seal face torsional movement. Pre-assembled for easy installation, this seal is suitable for a wide range of commercial and domestic pumps. With a size of 1 inch and face materials of Carbon and Silicon Carbide, this seal is built to withstand up to 75 psi pressure and temperatures reaching 400°F. The elastomers include Buna, EPDM, and Viton, while metallurgy options consist of 18-8SS and 316SS. Choose from various seat types like Cup, L Clamp, O-Ring Block, O-Ring Groove, and T Clamp for a customized fit.

Product Specifications

Specifications Bore Depth
1.625 in
Specifications Elastomers
Buna | EPDM | Viton
Specifications Face Materials
Carbon | Silicon Carbide
Specifications Manufacturer
AARDVARK
Specifications Max Pressure
75 psi
Specifications Max Temperature
400 ºF
Specifications Metallurgy
18-8SS | 316SS
Specifications Pressure Balanced
N
Specifications Seat Type
Cup | L Clamp | O-Ring Block | O-Ring Groove | T Clamp
Specifications Size
1 in
Specifications Working Length
0.874 in
