Aardvark A682 Single Cartridge Seals - API-682 Compliant
Aardvark A682 Single Cartridge Seals - API-682 Compliant
SKU:MEC-ebddd2
Enhanced Aardvark A682 Single Cartridge Seals meeting API-682 standards for ANSI pumps. Durable and reliable design for industrial applications.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Aardvark A682 Single Cartridge Seals - API-682 Compliant
$249.99
Quantity: 1
Claim Your Seller Account
Aardvark A682 Single Cartridge Seals - API-682 Compliant
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

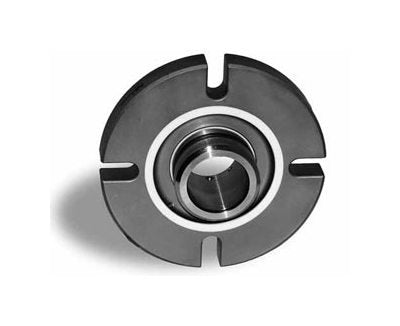

The Aardvark A682 Single Cartridge Seals are meticulously engineered to adhere to API-682 standards, making them ideal for large or tapered bore ANSI pumps. Featuring Category 1, Type A, Arrangement 1CW-FX design, these seals boast high-grade monolithic carbon & silicon carbide faces for exceptional durability. With pressure reversals and vacuum handling capabilities, along with gland bolt holes & registered fit to specific pumps, these seals ensure reliable performance. The hydraulically balanced design, standard Flush, Vent, and Drain connections, and Throttle bushing for safety connections make these seals a top choice for demanding industrial applications.
Product Specifications
Specifications Bore Depth
3.5 in
Specifications Connections
Drain | Flush | Vent
Specifications Elastomers
AFLAS | EPDM | Kalrez | Viton
Specifications Face Materials
Antimony | Carbon | Silicon Carbide | Tungsten Carbide
Specifications Manufacturer
AARDVARK
Specifications Max Pressure
300 psi
Specifications Max Temperature
450 ºF
Specifications Metallurgy
316SS | Alloy 20 | Hastelloy
Specifications Pressure Balanced
Y
Specifications Size
1-3/4 in
