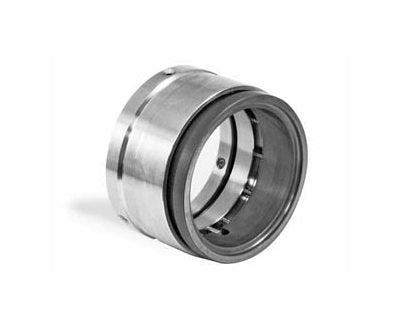

Aardvark A9 Multi-Spring Mechanical Seals
Aardvark A9 Multi-Spring Mechanical Seals
SKU:MEC-2903c3
Reliable Aardvark A9 Multi-Spring Mechanical Seals for extreme conditions. Easy installation & field repairable.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Aardvark A9 Multi-Spring Mechanical Seals
$249.99
Quantity: 1
Claim Your Seller Account
Aardvark A9 Multi-Spring Mechanical Seals
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Aardvark A9 Multi-Spring Mechanical Seals are designed for extreme temperature and chemical services, featuring a compact narrow cross-section design with multiple springs to ensure accurate face loading. These seals have a flexible design that compensates for shaft misalignment, with all components held together by a snap ring in a unitized construction. Field repairable and easy to install and remove, these seals offer reliability and durability in industrial settings. The face materials include Antimony, Carbon, Silicon Carbide, and Tungsten Carbide, while elastomers comprise PTFE. With metallurgy options like 18-8SS, 316SS, Alloy 20, and Hastelloy, these seals are versatile and can withstand up to 200 psi pressure and 450°F temperature.
Product Specifications
Specifications Bore Depth
4 in
Specifications Elastomers
PTFE
Specifications Face Materials
Antimony | Carbon | Silicon Carbide | Tungsten Carbide
Specifications Manufacturer
AARDVARK
Specifications Max Pressure
200 psi
Specifications Max Temperature
450 ºF
Specifications Metallurgy
18-8SS | 316SS | Alloy 20 | Hastelloy
Specifications Pressure Balanced
Optional
Specifications Seat Type
Cup | L Clamp | O-Ring Block | O-Ring Groove | T Clamp
Specifications Size
3-1/8 in
Specifications Working Length
1.687 in
