Aardvark A9 Multi-Spring Seals for Extreme Environments

Name: Aardvark A9 Multi-Spring Seals for Extreme Environments
Brand: AB Industrial
SKU: MEC-e0c01a
Price: 129.99 USD
Availability: OutOfStock

SKU:MEC-e0c01a

Aardvark A9 Multi-Spring Seals: Extreme temperature and chemical service seals with flexible design and easy maintenance.

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

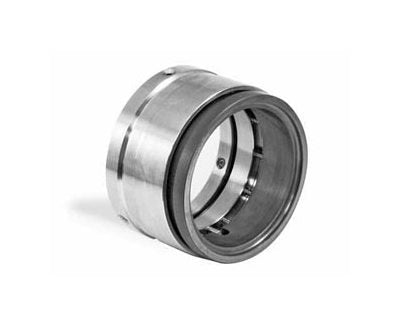

The Aardvark A9 Multi-Spring Seals are engineered for extreme temperature and chemical services, featuring a compact narrow cross-section design with multiple springs for accurate face loading. Their flexible design compensates for shaft misalignment, ensuring optimal performance. With components held together by a snap ring in a unitized construction design, these seals offer easy installation, removal, and field repairability. Manufactured by AARDVARK, they come in a Size of 3-1/4 in with a Bore Depth of 4.125 in and a Max Pressure of 200 psi. The face materials include Antimony, Carbon, Silicon Carbide, and Tungsten Carbide, with elastomers made from PTFE for enhanced durability.

Product Specifications

Specifications Bore Depth

4.125 in

Specifications Elastomers

PTFE

Specifications Face Materials

Antimony | Carbon | Silicon Carbide | Tungsten Carbide

Specifications Manufacturer

AARDVARK

Specifications Max Pressure

200 psi

Specifications Max Temperature

450 ÂºF

Specifications Metallurgy

18-8SS | 316SS | Alloy 20 | Hastelloy

Specifications Pressure Balanced

Optional

Specifications Seat Type

Cup | L Clamp | O-Ring Block | O-Ring Groove | T Clamp

Specifications Size

3-1/4 in

Specifications Working Length

1.687 in
