Aardvark A9 Multi-Spring Seals - High-Temp Chemical Service

Name: Aardvark A9 Multi-Spring Seals - High-Temp Chemical Service
Brand: AB Industrial
SKU: MEC-84d8cd
Price: 199.99 USD
Availability: OutOfStock

SKU:MEC-84d8cd

Premium Aardvark A9 Multi-Spring Seals for extreme temperatures and chemicals, easy to install and repair.

$199.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

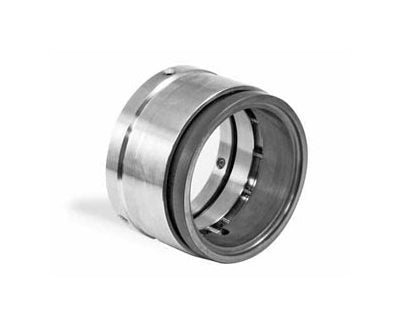

The Aardvark A9 Multi-Spring Seals are engineered for extreme temperature and chemical services, featuring a compact design with multiple springs for precise face loading. Their flexible construction compensates for shaft misalignment, ensuring reliable performance. With components securely held by a snap ring in a unitized design, these seals offer easy installation, removal, and field repairability. Manufactured by AARDVARK, they boast a size of 2-3/8 in, a working length of 1.687 in, and withstand pressures up to 200 psi as well as temperatures up to 450 °F. The face materials include Antimony, Carbon, Silicon Carbide, and Tungsten Carbide, while elastomers consist of PTFE. Choose from metallurgy options like 18-8SS, 316SS, Alloy 20, or Hastelloy, and various seat types like Cup, L Clamp, O-Ring Block, O-Ring Groove, or T Clamp. Pressure balancing is optional for enhanced performance.

Product Specifications

Specifications Bore Depth

3.25 in

Specifications Elastomers

PTFE

Specifications Face Materials

Antimony | Carbon | Silicon Carbide | Tungsten Carbide

Specifications Manufacturer

AARDVARK

Specifications Max Pressure

200 psi

Specifications Max Temperature

450 ÂºF

Specifications Metallurgy

18-8SS | 316SS | Alloy 20 | Hastelloy

Specifications Pressure Balanced

Optional

Specifications Seat Type

Cup | L Clamp | O-Ring Block | O-Ring Groove | T Clamp

Specifications Size

2-3/8 in

Specifications Working Length

1.687 in
