Aardvark A9 Multi-Spring Seals - High-Temperature Chemical Resistant Design

Name: Aardvark A9 Multi-Spring Seals - High-Temperature Chemical Resistant Design
Brand: AB Industrial
SKU: MEC-6516ff
Price: 299.99 USD
Availability: OutOfStock

SKU:MEC-6516ff

High-Temp Chemical-Resistant Aardvark A9 Multi-Spring Seals for industrial use. Compact design, multiple springs, easy installation, repairable.

$299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

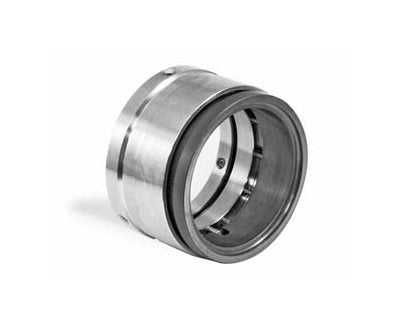

The Aardvark A9 Multi-Spring Seals are engineered for extreme temperature and chemical services in industrial applications. Featuring a compact narrow cross-section design and multiple springs that ensure accurate face loading, these seals offer exceptional flexibility to compensate for shaft misalignment. The unitized construction design held together by a snap ring, along with setting clips for easy installation and removal, make these seals field repairable. With face materials including Antimony, Carbon, Silicon Carbide, and Tungsten Carbide, elastomers made of PTFE, and metallurgy options of 18-8SS, 316SS, Alloy 20, and Hastelloy, these seals provide robust performance with a working length of 1.375 in, max pressure of 200 psi, and max temperature of 450 °F.

Product Specifications

Specifications Bore Depth

2.5 in

Specifications Elastomers

PTFE

Specifications Face Materials

Antimony | Carbon | Silicon Carbide | Tungsten Carbide

Specifications Manufacturer

AARDVARK

Specifications Max Pressure

200 psi

Specifications Max Temperature

450 ÂºF

Specifications Metallurgy

18-8SS | 316SS | Alloy 20 | Hastelloy

Specifications Pressure Balanced

Optional

Specifications Seat Type

Cup | L Clamp | O-Ring Block | O-Ring Groove | T Clamp

Specifications Size

1-3/4 in

Specifications Working Length

1.375 in
