Aardvark A9 Multi-Spring Seals - High-Temperature Chemical Seals
Aardvark A9 Multi-Spring Seals - High-Temperature Chemical Seals
SKU:MEC-564b69
Enhance machinery performance with Aardvark A9 Multi-Spring Seals for extreme conditions. Easy installation, field repairable. Ideal for high-pressure, high-temperature applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Aardvark A9 Multi-Spring Seals - High-Temperature Chemical Seals
$129.99
Quantity: 1
Claim Your Seller Account
Aardvark A9 Multi-Spring Seals - High-Temperature Chemical Seals
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

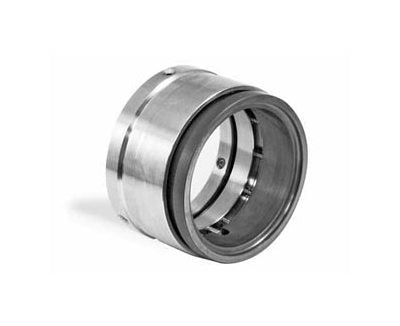

The Aardvark A9 Multi-Spring Seals are engineered for extreme temperature and chemical services, featuring a compact design with multiple springs for accurate face loading. With a flexible design that compensates for shaft misalignment and a unitized construction held together by a snap ring, these seals ensure easy installation, removal, and field repair. Manufactured by Aardvark, these seals boast a 2-1/2 inch size, 3.375 inch bore depth, and can withstand up to 200 psi pressure and 450 °F temperature. The face materials include Antimony, Carbon, Silicon Carbide, and Tungsten Carbide, while the elastomers feature PTFE for enhanced durability. Suitable for various applications with seat types like Cup, L Clamp, O-Ring Block, O-Ring Groove, and T Clamp, these seals also offer an optional pressure balanced feature.
Product Specifications
Specifications Bore Depth
3.375 in
Specifications Elastomers
PTFE
Specifications Face Materials
Antimony | Carbon | Silicon Carbide | Tungsten Carbide
Specifications Manufacturer
AARDVARK
Specifications Max Pressure
200 psi
Specifications Max Temperature
450 ºF
Specifications Metallurgy
18-8SS | 316SS | Alloy 20 | Hastelloy
Specifications Pressure Balanced
Optional
Specifications Seat Type
Cup | L Clamp | O-Ring Block | O-Ring Groove | T Clamp
Specifications Size
2-1/2 in
Specifications Working Length
1.375 in
