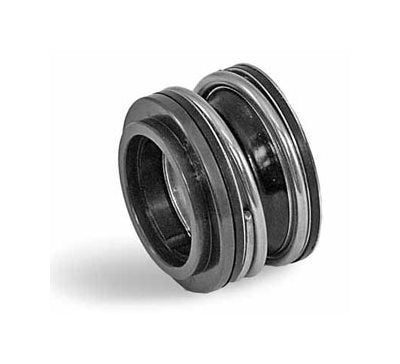

Aardvark ACS2 Double Cartridge Seals - High-Pressure Pump Seal
Aardvark ACS2 Double Cartridge Seals - High-Pressure Pump Seal
SKU:MEC-7a265b
High-pressure double cartridge seals for critical fluids. ANSI pump-compatible with silicon carbide faces. Easy maintenance & pressure reversal compensation.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Aardvark ACS2 Double Cartridge Seals - High-Pressure Pump Seal
$299.99
Quantity: 1
Claim Your Seller Account
Aardvark ACS2 Double Cartridge Seals - High-Pressure Pump Seal
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Aardvark ACS2 Double Cartridge Seals are engineered to deliver exceptional performance for handling critical, toxic, and non-lubricating fluids. With a stationary multiple spring cartridge design, easy installation, and interchangeable components, these seals ensure ANSI pump compatibility and non-clogging operation in the stuffing box. Featuring inboard silicon carbide vs silicon carbide faces combination and three identical monolithic silicon carbide faces, the ACS2 provides superior seal integrity and user-friendly maintenance. Springs are protected from the product, compensating for pressure reversals, while user-friendly setting clips enhance operational efficiency. Ideal for industrial applications requiring reliability and durability.
Product Specifications
Specifications Bore
Big Bore | Standard
Specifications Connections
Flush In & Out
Specifications Elastomers
AFLAS | EPDM | Kalrez | Viton
Specifications Face Materials
Antimony | Carbon | Silicon Carbide | Tungsten Carbide
Specifications Manufacturer
AARDVARK
Specifications Max Pressure
300 psi
Specifications Max Temperature
450 ºF
Specifications Metallurgy
316SS | Alloy 20 | Hastelloy
Specifications Pressure Balanced
Y
Specifications Size
2-1/2 in
Specifications Working Length
1.5 in
