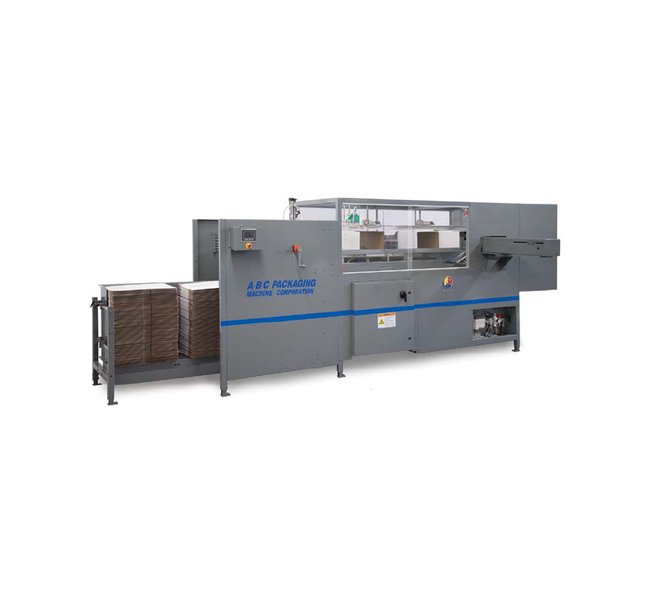

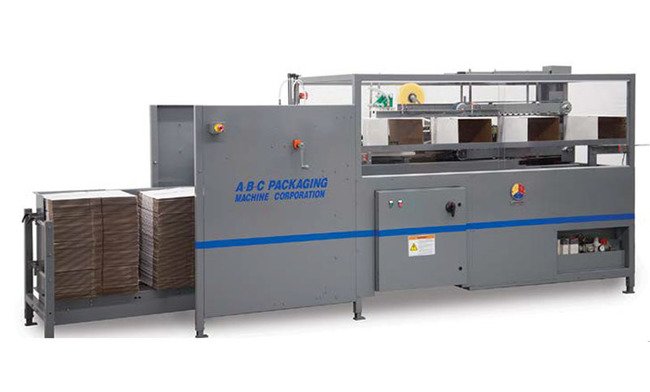

ABC Model 300 Case Erectors
ABC Model 300 Case Erectors
SKU:MAC-d58c32
Efficient and durable case erectors with top feed magazine for warped cases. Ensures square cases and smooth closing. Ideal for institutional buyers.
Regular price
$12,999.99
Regular price
Sale price
$12,999.99
Unit price
per
Initiate Order
ABC Model 300 Case Erectors
$12,999.99
Quantity: 1
Claim Your Seller Account
ABC Model 300 Case Erectors
$12,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The ABC Model 300 Case Erectors are designed for high-speed case erecting, featuring a top feed magazine that accommodates warped or band-marked cases with ease. With features such as dual gripper case opening, automatic blowback system, and vacuum case opening technology, these case erectors ensure square cases and smooth inner flap closing. Built with quality features like tubular steel frame construction, mechanical walking beam case transfer, and a reliable high capacity vacuum system, the ABC Model 300 Case Erectors offer dependable performance and quick changeover capabilities. Ideal for institutional buyers looking for efficiency and durability in secondary packaging solutions.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features Features
Top feed magazine runs warped and band-marked casesThe top feed magazine design eliminates back pressure that can cause misfeeding in vertical feed magazines. Cases are lifted by dual, spring-loaded grippers that self adjust to feed from uneven stacks caused by warped or band-marked cases.After cases are lifted from the stack, the slide bar positively indexes them to the opening station.Positive dual gripper case openingAt the opening station, cases are gripped from below as the reciprocating arm pulls them open. This dual pullback system is forgiving to cases with poor manufacturer's joints and positively opens double wall styles. An automatic blowback system keeps air lines clean.Case opening on outer flap ensures smooth inner flap closingA-B-C's vacuum case opening technology smoothly opens even warped and bent cases, unlike pin-style openers which require straight corrugated flutes for proper operation. Over-opening on the flap ensures successful inner flap closing, even when running cases with out-of-spec manufacturer's joints.
Models Models

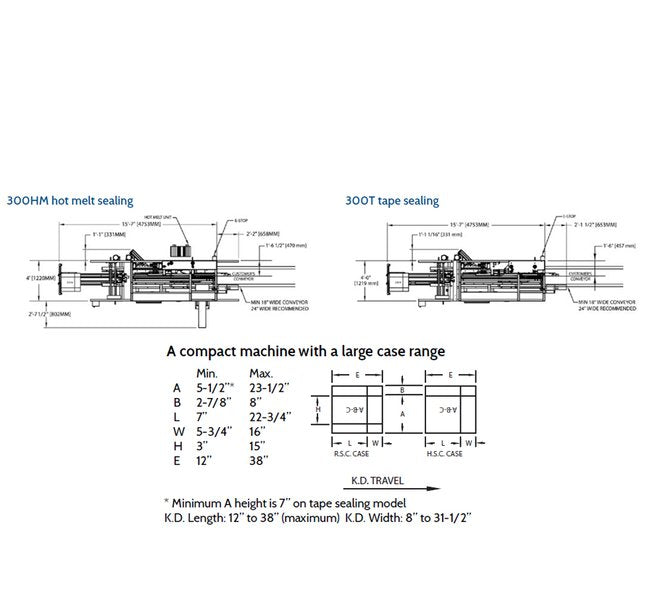

300HM | 300T
Note Note
All information in this brochure was current at time of printing, however, in the continuing effort to improve the quality and construction of A-B-C equipment, we reserve the right to make changes without notice.
Quality Features Quality Features
Tubular steel box frame constructionMechanical walking beam case transfer squares cases during travelClear, high visibility guards are electrically interlocked to stop the machine when openedSubstantial 1 hp drive motor powers erectorAdjustable leveling footpadsSealed bearings minimize maintenanceAutomatic water eliminator keeps air lines dryQuick changeover with rapid-adjust hand cranks and locking slides
Specifications Brand
ABC Packaging
Specifications Type
Case Erectors
Standard Features Standard Features
Heavy steel box-style frame resists vibration and wearErgonomic low level magazine- No lifting heavy casesMagazine holds 3 stacks for less frequent refillsContinuous mechanical main drive with sealed bearing linkage provides dependable performanceMultiple features to accommodate out-of-spec corrugatedReliable high capacity vacuum system with reduced energy consumptionCase-squaring walking beam transferHigh visibility lockout guards3 minute changeover with simple turn wheels and locking slidesEasy access, quick change tape rollAdhesive patterns are pre-set for case sizes
