ABC Packaging Model 121 Tablock Case Slitters/Sealers
ABC Packaging Model 121 Tablock Case Slitters/Sealers
SKU:MAC-eec6e5
Efficient and precise tablock case slitting and sealing machine for high-speed operations. Meets federal procurement standards.
Regular price
$18,999.00
Regular price
Sale price
$18,999.00
Unit price
per
Initiate Order
ABC Packaging Model 121 Tablock Case Slitters/Sealers
$18,999.00
Quantity: 1
Claim Your Seller Account
ABC Packaging Model 121 Tablock Case Slitters/Sealers
$18,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

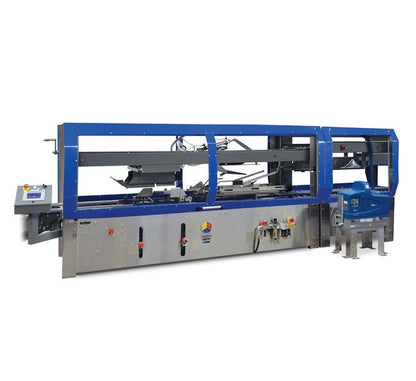

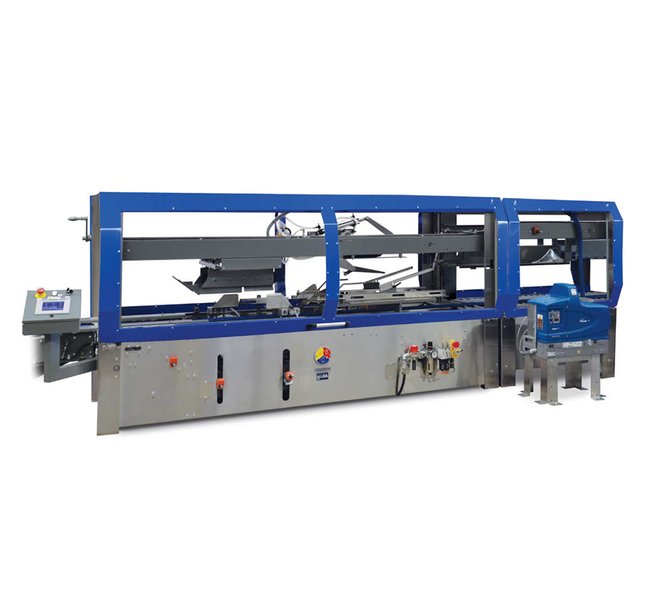

The ABC Packaging Model 121 Tablock Case Slitters/Sealers is a cutting-edge solution for efficiently processing tablock cases. With a compact design and a speed of up to 50 cases/min, this machine offers precise tab slitting, accurate flap folding, and square case sealing. Featuring self-lubricated air cylinders, maintenance-free sealed bearings, and high traction belting for positive case transfer, it ensures reliable performance and low maintenance. This machine meets Federal/DoD procurement standards, GSA requirements, FAR compliance factors, and industry-specific certifications, making it a dependable choice for institutional buyers.
Product Specifications
Electrical Specifications Frequency
60 Hz
Electrical Specifications Number Of Phase
3
Electrical Specifications Primary Voltage
460 V
Features Features
Positive case feedThe automatic metering belt and gate release mechanisms ensure proper spacing and control of cases during high speed operation. High traction belting provides positive case transfer.Precise tab slittingThe simple and forgiving tab slitter design automatically accommodates the inherent variations in each case for "no excuses" accuracy. The slitters precisely contact the case, lift and cut the tabs, in continuous, mechanical motion.Accurate flap foldingFloating guides gently sweep the inner flaps upward to be folded by timed mechanical flap folders. Outer flap closing is provided by A-B-Câs production-proven contoured, cast aluminum flap folders.Square case sealingThe compression section has powered top and bottom belts backed by steel rollers to seal cases squarely and securely. The top motorized compression belt is backed by spring-loaded rollers that assure a secure adhesive bond regardless of case height variations.Continuous, high speed operationCompact, in-line designWide case rangeLow maintenance
Note Note

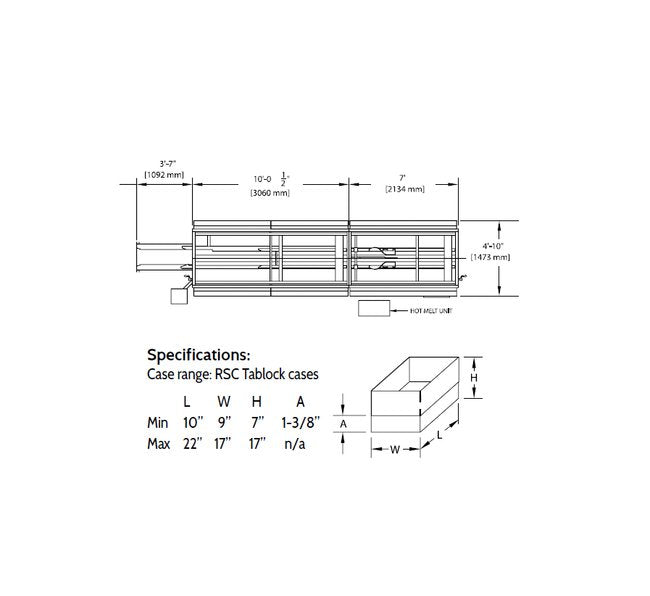

Tape and adhesive sealing models available.Floorplan : Hot melt sealer shown-same footprint for tape sealer (no hot melt unit).All information in this brochure was current at time of printing, however, in the continuing effort to improve the quality and construction of A-B-C equipment, we reserve the right to make changes without notice.
Quality Features Quality Features
Self lubricated air cylindersMaintenance-free sealed bearingsContoured cast aluminum flap foldersGull wing style high visibility doorsAutomatic water eliminatorOptional automatic metering belt and gate release mechanisms available
Specifications Air Flow Per Cycle At 75 Pound Per Square Inch Ps
0.71 scfm
Specifications Applications
Case Sealers
Specifications Brand
ABC Packaging
Specifications Case Style
Regular Slotted Case (RSC) with Tablock
Specifications Flap Lifters Motor Power
1/2 hp
Specifications Machine Weight
4000 lb
Specifications Mechanical Main Drive Motor Power
1.5 hp
Specifications Metering Belt Motor Power
1/3 hp
Specifications Number Of Flap Lifters
2
Specifications Speed
Up to 50 cases/min
