ABC Packaging Model 335 Case Erectors
ABC Packaging Model 335 Case Erectors
SKU:MAC-66dc62
Boost packaging efficiency with the ABC Packaging Model 335 Case Erectors' high-speed, versatile performance and reliable features.
Regular price
$28,999.99
Regular price
Sale price
$28,999.99
Unit price
per
Initiate Order
ABC Packaging Model 335 Case Erectors
$28,999.99
Quantity: 1
Claim Your Seller Account
ABC Packaging Model 335 Case Erectors
$28,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

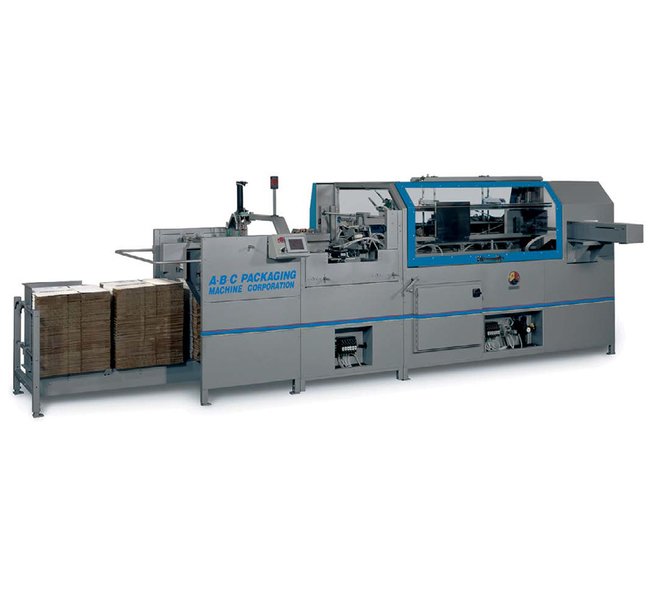

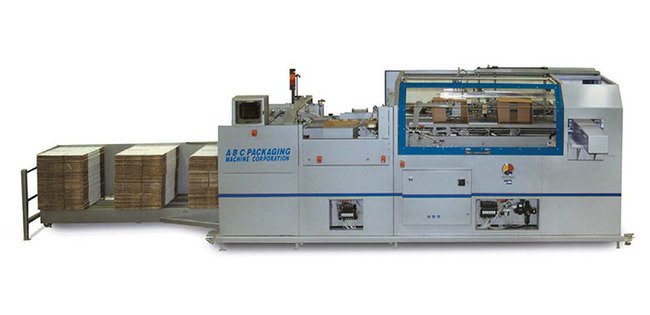

The ABC Packaging Model 335 Case Erectors are versatile machines designed for high-speed operation, accommodating a wide range of case styles including RSC, HSC, and CSSC with Tablock. With a robust construction and reliable performance, these case erectors feature rapid changeover capabilities, NEMA 12 electrical components, and a high-capacity case magazine. Additional optional features like flap memory relaxer and swivel casters enhance functionality for various packaging needs. Ideal for maximizing efficiency in secondary packaging processes, these case erectors ensure seamless operations and consistent results.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Electrical Specifications Frequency
60 Hz
Electrical Specifications Number Of Phase
3
Electrical Specifications Primary Voltage
220 V | 440 V

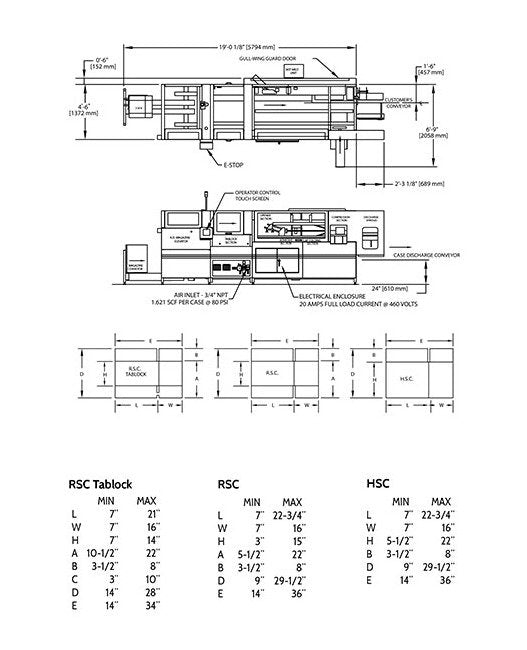

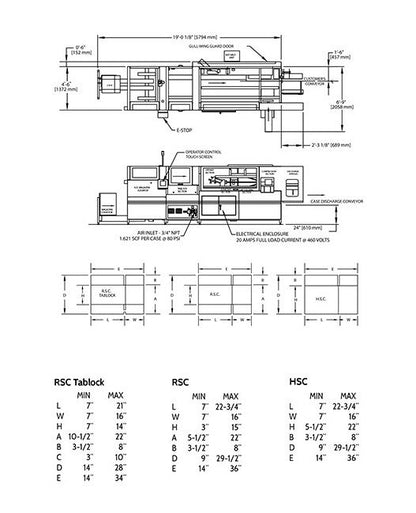

Machine Dimensions Machine Height
6 ft 4 in.
Machine Dimensions Machine Length
19 ft
Machine Dimensions Machine Width
4 ft 6 in.
Note Note
All information in this brochure was current at time of printing, however, in the continuing effort to improve the quality and construction of A-B-C machines, we reserve the right to make changes without notice. Guards may be opened or removed for photos shown.
Optional Features Optional Features
Major flap memory relaxer for seal-after pack operationsLocking swivel casters for portabilityRepeatable position indicators on adjustment shafts
Specifications Brand
ABC Packaging
Specifications Case Style
Center Special Slotted Container (CSSC) | Half Slotted Case (HSC) | Regular Slotted Case (RSC) | Regular Slotted Case (RSC) with Tablock
Specifications Speed
Up to 30 cases/min
Specifications Type
Case Erectors
Specifications Weight
3000 lb
Standard Features Standard Features
NEMA 12 Electrical components with 24 volt controlsRapid changeover, tablock bypassAir regulator / filter / water eliminator accommodates unclean air and prevents air valve damage caused by moisture in air linesHigh capacity, low level loading case magazineSimple hand cranks and locking slide handles for rapid changeoverHeavy gauge steel frameSealed bearingsSelf-lubricating air cylindersContinuous motion main drive for reliable performanceElectronic variable speed drive systemElectronic solenoid valve package
