ABC Packaging Model 340 Case Erectors
ABC Packaging Model 340 Case Erectors
SKU:MAC-ba5185
Reliable and efficient ABC Packaging Model 340 Case Erectors for large cases with quick changeover.
Regular price
$7,499.99
Regular price
Sale price
$7,499.99
Unit price
per
Initiate Order
ABC Packaging Model 340 Case Erectors
$7,499.99
Quantity: 1
Claim Your Seller Account
ABC Packaging Model 340 Case Erectors
$7,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

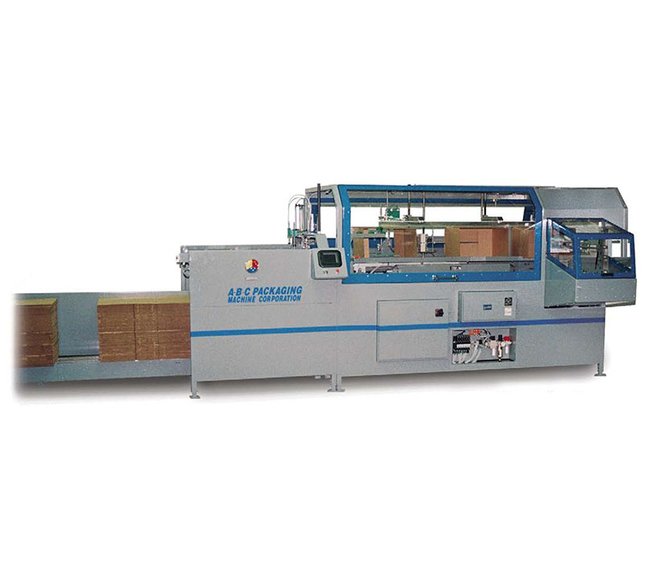

The ABC Packaging Model 340 Case Erectors are versatile workhorse machines designed for large and oversized cases in industrial settings. With an all-mechanical drive, these case erectors ensure reliable operation and quick changeovers with no-tool adjustments. Featuring PLC control with a color touchscreen interface, these machines offer precise operation and can seal cases with tape or adhesive. Equipped with intelligent control technology, high capacity magazine, reliable mechanical transfer system, and servo-powered compression ram, the Model 340 Case Erectors are ideal for high-speed production lines requiring efficient secondary packaging solutions.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Air Flow Air Flow Per Cycle Adhesive At 80 Pound Per Square Inch
1.12 scfm
Air Flow Air Flow Per Cycle Tape At 80 Pound Per Square Inch Psi
576 scfm
Electrical Specifications Frequency
60 Hz
Electrical Specifications Number Of Phase
3
Electrical Specifications Primary Voltage
230 V | 460 V
Features Features
Intelligent Control ensures precise operationA-B-C's Intelligent Control takes PLC logic one step further, to provide unprecedented control of line performance. Closed loop position feedback ensures precise timing of each operating sequence, utilizing non-contact sensors to provide input. The touchscreen display provides real-time operating data, and allows independent operation of all functions, diagnostics, and changeover settings.Easy load magazine and positive case feedThe high capacity magazine holds up to two case stacks, and automatically indexes each stack into position to provide a continuous case supply with minimum operator attention.Cases are indexed with a combination gripper/slide rail system that is designed to accommodate out-of-spec corrugated and smoothly handles large, heavy cases.Reliable, case-squaring mechanical transferThe mechanical walking beam transfer bars are mounted on synchronized transfer chain. This design provides additional squaring action as cases travel from erecting through sealing.Servo-powered compression ram (Adhesive sealing)The servo-powered sealing ram ensures full compression on every case for secure sealing during high speed production.2" or 3" wide Tape applicator (Tape sealing)
Models Models

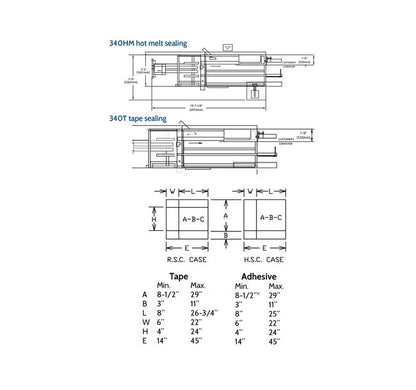

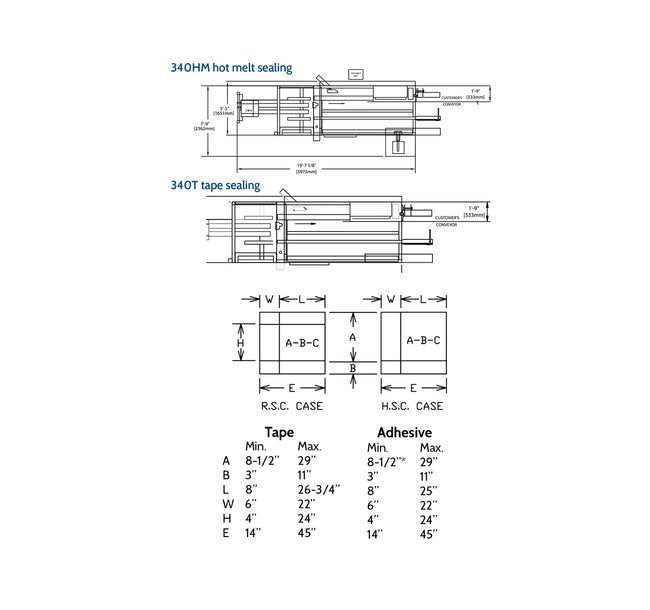

340HM | 340T
Note Note
All information in this brochure was current at time of printing, however, in the continuing effort to improve the quality and construction of A-B-C equipment, we reserve the right to make changes without notice.
Quality Features Quality Features
Closed loop steel frame constructionAll-mechanical main case driveHigh capacity vacuum systemCase control discharge chuteGull-wing style high visibility machine doors allow easy machine accessElevated beacon fault lightSealed bearings throughout minimize maintenanceLow level magazine holds up to 2 stacks of casesA-B-C's Intelligent Control for operation, machine jog, diagnostics, troubleshooting, changeover settingsAlarm history readoutPLC control ensures precise operationTouchscreen control panel displays all operating data and offers complete control of all functionsNon-contact sensors monitor machine operationRunning case countProduction count pre-selectStandard fault detection features:No/low air pressureDownstream case backupDoor openedCase did not open properlyMotor overloadEncoder or coupling malfunctionPowered auto-adjust optionMagazine extension option for added KD capacity
Specifications Brand
ABC Packaging
Specifications Case Style
Half Slotted Case (HSC) | Regular Slotted Case (RSC)
Specifications Kd Length
14 to 45 in
Specifications Kd Width
12 to 42 in
Specifications Speed
Up to 30 cases/min
Specifications Type
Case Erectors
