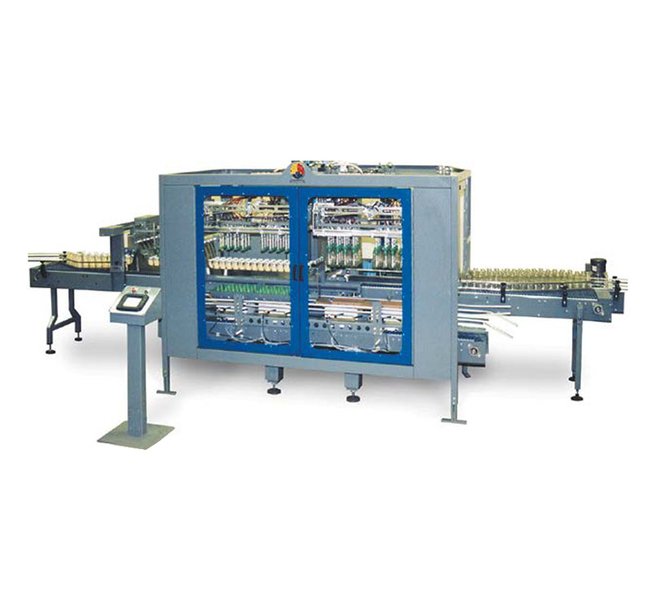

Upgrade your bottling line efficiency with the ABC Packaging Model 360 Uncasers and Packers. This innovative machine offers precise robotic container handling, ensuring container and label integrity. With features like no-drop handling, reduced risk of breakage, and gentle container packing, it caters to a variety of glass and plastic containers. Save floor space, reduce labor costs, and increase productivity with this compact design. The servo operation provides high-speed performance, handling up to 15 cases per minute. Designed for versatility, this system replaces manual uncasing and case packing labor, making it an essential addition to your production line.
Product Specifications
Features Features
Precise robotic container handlingServo operation provides precise handling to ensure container and label integrityNO DROP - containers are released only upon contact with case or conveyor:Improved bottle stability when handling lightweight plastic containersReduced risk of breakage when handling glassPrecision handling of heavy, industrialized containersGentle container packingDuring transfer, the packing head separates the containers slightly prior to inserting into the case. This action protects the labels by preventing contact with the partitions or case walls during packing.Containers are lowered through a grid with fingers to ensure proper alignment with case cells, and released only when they reach the bottom of the case.Reduce labor, increase efficiency, and save floor spaceThis system replaces both manual uncasing and case packing labor to reduce liability and production costs while increasing your line productivity. It has a compact footprint, using 1/2 the space typically required for separate uncasing and packing machines.Designed for your productMany pick up devices are offered to handle many different container types. Pneumatic, vacuum or mechanical grippers may be used depending on the product requirements.
Note Note
All information in this brochure was current at time of printing, however, in the continuing effort to improve the quality and construction of A-B-C equipment, we reserve the right to make changes without notice.
Quality Features Quality Features
Servo-controlled vertical movementFinger grid protects labels during packingMultiple heads for higher volume per cycleIntelligent Control (PLC) of all machine functionsPhoto eyes with background suppressionColor touchscreen control panelManual operation of all functionsSEW Eurodrive motor for main horizontal movement
Specifications Brand
ABC Packaging
Specifications Case Style
Half Slotted Case (HSC) | Regular Slotted Case (RSC) | Regular Slotted Case (RSC) with Tablock
Specifications Speed
Up to 15 cases/min
