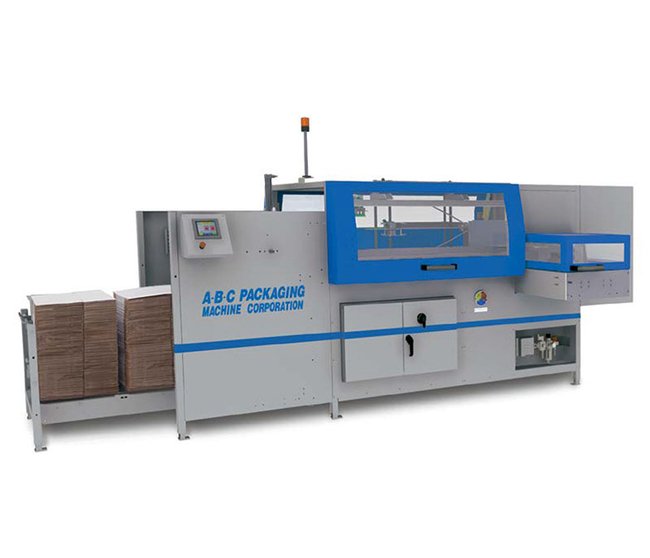

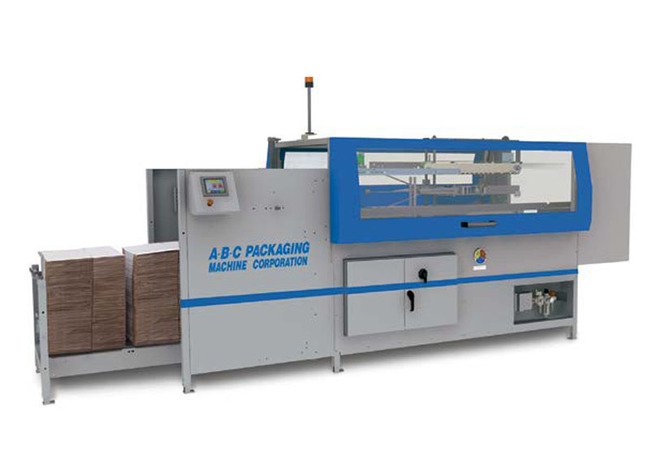

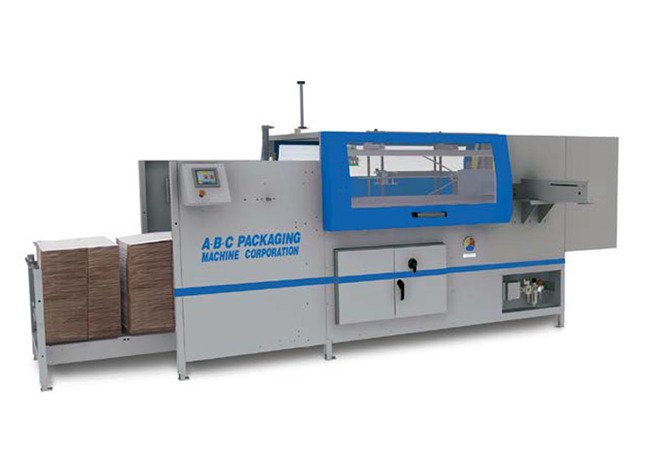

The ABC Packaging Model 400 Case Erectors are robust machines designed to excel in real-world production environments, handling less-than-perfect corrugated material with ease. Featuring quick changeover capabilities, a wide case range, and low maintenance requirements, these workhorse case erectors consistently deliver square cases to your production line. With multiple models available, including the 400T, 400HM, and 400HS, these erectors offer variable speeds tailored to your specific case sizes and production needs. Built-in quality features such as high efficiency motors, soft stop functionality, and fault detection mechanisms ensure optimal performance and reliability. Optional features like magazine extensions, servo-controlled sealing ram, and repeatable position indicators further enhance operational efficiency and customization.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Models Models
400HM | 400HS | 400T
Note Note
All information in this brochure was current at time of printing, however, in the continuing effort to improve the quality and construction of A-B-C machines, we reserve the right to make changes without notice. Guards may be opened or removed for photos shown.
Optional Features Optional Features
Magazine extensions for additional capacityCSSC case capabilityServo-controlled sealing ram standard on 400HS, optional on 400HMRepeatable position indicators on adjustment shaftsLow tape-No tape sensors ensure quick roll replacement and eliminate tape head rethreading
Quality Features Quality Features
400T Variable speed 10 - 35 cases/minute (Dependent on case sizes, consult factory).400HM Variable speed 10 - 30 cases/minute (Dependent on case sizes, consult factory). Speed can ramp up and down - all settings including adhesive adjust automatically400HS Variable speed 20 - 40 cases/minute (Dependent on case sizes, consult factory) (includes high speed case indexer and servo controlled sealing ram as standard features)High efficiency motorsSoft Stop - quits operation without dumping airCycle Stop - cycles out all cases before stopMain drive jog functionManual operation of all functions incl. glue testProximity sensors with quick disconnectElevated beacon fault lightCase discharge back-up eye for surge controlHot melt model can be converted to tape sealing/ Tape model to hot melt sealingSelf-lubricating air cylindersAutomatic air filter/lubricator/water eliminatorStandard fault detection features:No/low air pressureDownstream case backupcase magazine is empty or lowGuard door openedcase did not open properlyEmergency stop activatedMotor overloadEncoder or coupling malfunctionIndividual sensor malfunctionMinimum speed faultFault alarm history record
Specifications Brand
ABC Packaging

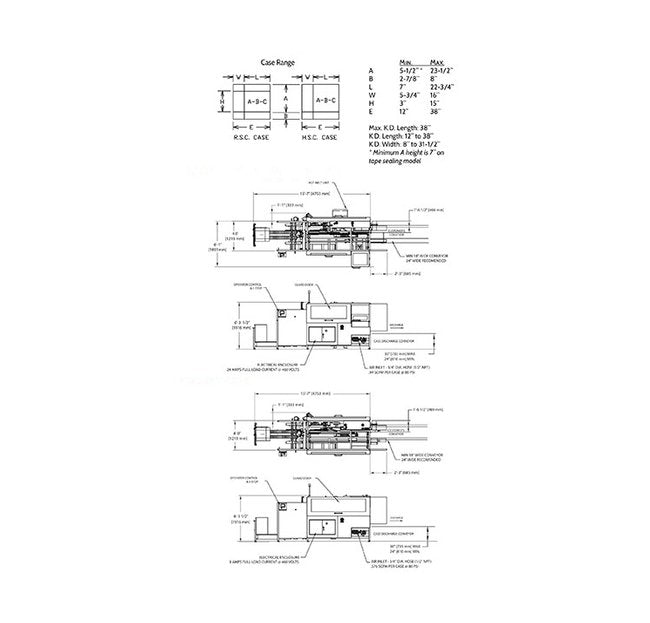

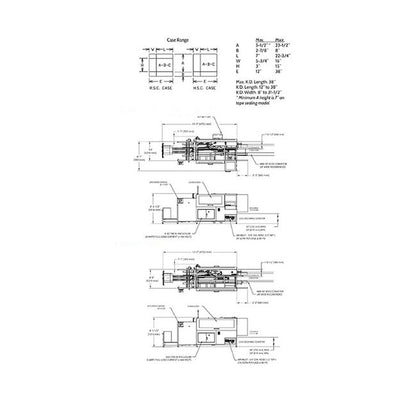

Specifications Kd Length
12 to 38 in
Specifications Kd Width
8 to 31-1/2 in
Specifications Type
Case Erectors
