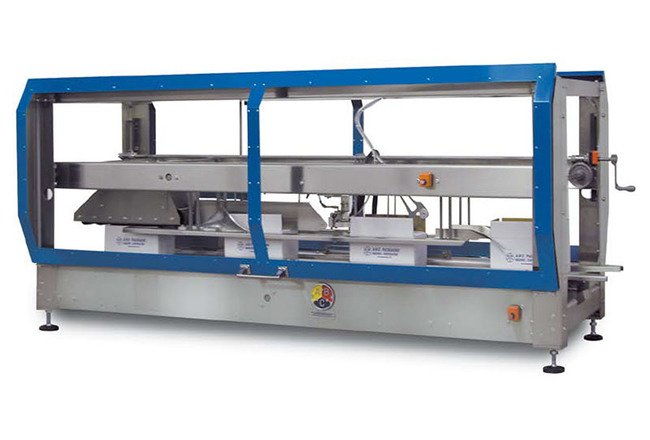

ABC Packaging Model 436 Top Case Sealers
ABC Packaging Model 436 Top Case Sealers
SKU:MAC-edf653
Highly efficient and reliable top case sealers with non-stop case feed and flexible compression rollers for secure sealing.
Regular price
$7,999.99
Regular price
Sale price
$7,999.99
Unit price
per
Initiate Order
ABC Packaging Model 436 Top Case Sealers
$7,999.99
Quantity: 1
Claim Your Seller Account
ABC Packaging Model 436 Top Case Sealers
$7,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The ABC Packaging Model 436 Top Case Sealers combine a super small footprint with rugged construction to meet even the most challenging sealing requirements. Featuring non-stop case feed for high-speed sealing, options for servo or pneumatic flap tucker, and flexible compression rollers for secure closure, these sealers allow for tape or adhesive sealing. With quality features like the Pacer belt infeed, rotating flap tucker, and adjustable leveling footpads, along with optional stainless steel frame construction and gull wing lift-up doors, these sealers offer reliability and efficiency for various packaging needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Electrical Specifications Frequency
60 Hz
Electrical Specifications Industry Standards
National Electrical Manufacturers Association (NEMA 12)
Electrical Specifications Note For Electrical Specifications
Models available for speeds to 100 cpm.
Electrical Specifications Number Of Phase
3
Electrical Specifications Primary Voltage
220 V | 440 V
Features Features
Nonstop case feed for reliable high speed sealingNonstop case feed keeps your line moving at maximum speed. Cases may feed to the sealer back to back or spaced, and the metering belt automatically spaces each case for synchronized flap folding and sealing.Rotary flap tucker for top performanceSimply smooth is the only way to describe this flap tucker. As each case passes, the tucker automatically rotates to gently and accurately fold the trailing inner flap.Contoured flap folders close the outer case flaps gently at the scoreline, even when running cases with poor scores. A steel tongue rides between the flaps as they are folded, preventing flap overlap.NO-CRUSH compression rollers provide secure adhesive sealing and square casesThe compression section has flexible rollers that compress the case flaps securely to provide square, well-sealed cases that run efficiently in automatic palletizing operations.Tape system designed for maximum uptimeThe tape system is externally mounted, for quick and easy roll replacement. An optional "roll empty" sensor stops the sealer as the end of the tape leaves the roll. The attendant simply replaces the tape, and attaches the new roll to the tail of the previous one.
Note Note
All information in this brochure was current at time of printing, however, in the continuing effort to improve the quality and construction of A-B-C equipment, we reserve the right to make changes without notice.
Optional Features Optional Features
Stainless steel frame constructionGull wing lift up doors
Quality Features Quality Features
Pacer belt infeed feeds cases spaced or back to backRotating flap tucker folds trailing inner flapContoured cast aluminum flap folders fold outer flapsFlexible compression rollers provide secure adhesive sealTape roll is externally mounted for quick replenishmentClear, high visibility guards - electrically interlocked to stop the machine when openedSubstantial 1 hp drive motor powers case sealerAdjustable leveling footpadsSealed bearings minimize maintenanceAutomatic water eliminator keeps air lines dryQuick changeover with rapid-adjust hand cranksCustom built to your line elevation
Specifications Applications
Case Sealers
Specifications Brand
ABC Packaging
Specifications Case Style
Center Special Slotted Container (CSSC) | Regular Slotted Case (RSC)
