ABC Packaging Model 450 Case Erectors
ABC Packaging Model 450 Case Erectors
SKU:MAC-2bb9ff
High-speed case erector with intelligent control system for square, well-sealed cases in high-speed operations
Regular price
$19,999.00
Regular price
Sale price
$19,999.00
Unit price
per
Initiate Order
ABC Packaging Model 450 Case Erectors
$19,999.00
Quantity: 1
Claim Your Seller Account
ABC Packaging Model 450 Case Erectors
$19,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

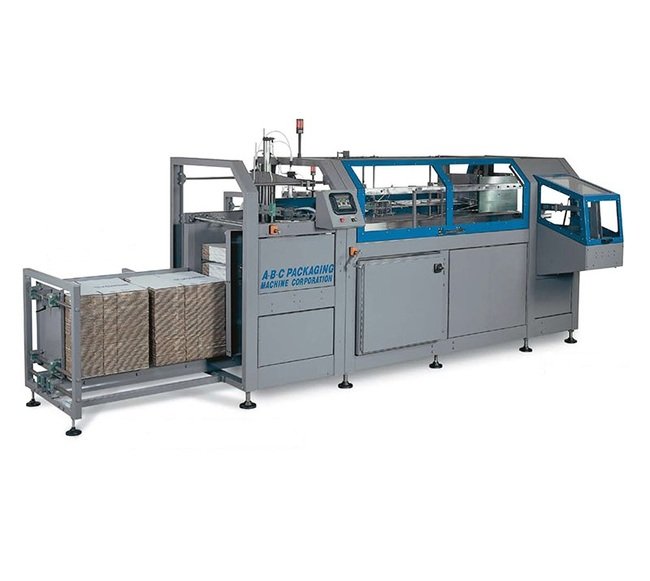

The ABC Packaging Model 450 Case Erectors are high-speed machines designed for efficient case forming and hot melt sealing, running at speeds of up to 50 cases per minute. With a compact frame, this workhorse machine features a floor-level KD case magazine to eliminate heavy lifting. Its patented features ensure square, well-sealed cases even with poor corrugated or uneven case stacks. The intelligent control system, large capacity case magazine, and servo-powered sealing ram make the 450 erector reliable, precise, and ideal for high-speed production lines.
Product Specifications
Electrical Specifications Frequency
60 Hz
Electrical Specifications Industry Standards
National Electrical Manufacturers Association (NEMA 12)
Electrical Specifications Number Of Phase
3
Electrical Specifications Primary Voltage
230 V | 460 V
Features Features
Large capacity, easy load case magazineThe high capacity case magazine with built-in auxiliary magazine assures a continuous supply of cases to the erector. As each case stack is used, another stack is automatically indexed into position, minimizing the attention of your line personnel. The ergonomic, low level magazine is easy to refill without lifting or raising cases.Designed for real world productionThe 450 erector is loaded with features to accommodate less than perfect cases. The opening arms 'over-open' the major flaps to compensate for incorrectly slotted cases, and the vacuum cups grip each case from above and below to compensate for warped cases and ensure proper opening.Motorized walking beams continuously square cases as they travel from opening through sealing to ensure that well-formed cases are sent to your packer.Intelligent Control ensures precise operationA-B-C's Intelligent Control takes PLC logic one step further, to provide unprecedented control of line performance. Closed loop position feedback ensures precise timing of each operating sequence, utilizing non-contact sensors to provide input. The touch screen display provides real-time operating data, and allows independent operation of all functions, diagnostics, and changeover settings.Servo-powered sealing ram forms square casesAs each case enters the sealing station, the servo motor-powered sealing ram smoothly and reliably enters the case and compresses the flaps to ensure a secure seal. The ram stroke is precisely controlled by the servo motor, ensuring optimum precision during high speed production runs.
Note Note
All information in this brochure was current at time of printing, however, in the continuing effort to improve the quality and construction of A-B-C equipment, we reserve the right to make changes without notice.
Optional Features Optional Features
Magazine extensions for additional capacityRepeatable position indicators on adjustment shaftsGrouped lubrication fittings
Quality Features Quality Features
Welded and bolted steel frame constructionAll-mechanical continuous motion main driveServo-operated sealing ramHigh capacity vacuum systemGull-wing style high visibility machine doors allow easy machine accessElevated beacon fault lightSealed bearings throughoutLow level magazine holds 3 stacks (approx. 300 KDs)A-B-C's Intelligent Control for operation, machine jog, diagnostics, troubleshooting, changeover settingsPLC control ensures precise operationTouchscreen control panel displays all operating data and offers complete control of all functionsNon-contact sensors monitor machine operationRunning case countProduction count pre-selectAlarm history readoutStandard fault detection features:Downstream case backupcase magazine empty or lowDoor openedCase did not open properlyNo/low air pressureMotor overloadEncoder or coupling malfunction
Specifications Air Flow Per Cycle At 80 Pound Per Square Inch Ps
0.878 scfm
Specifications Brand
ABC Packaging

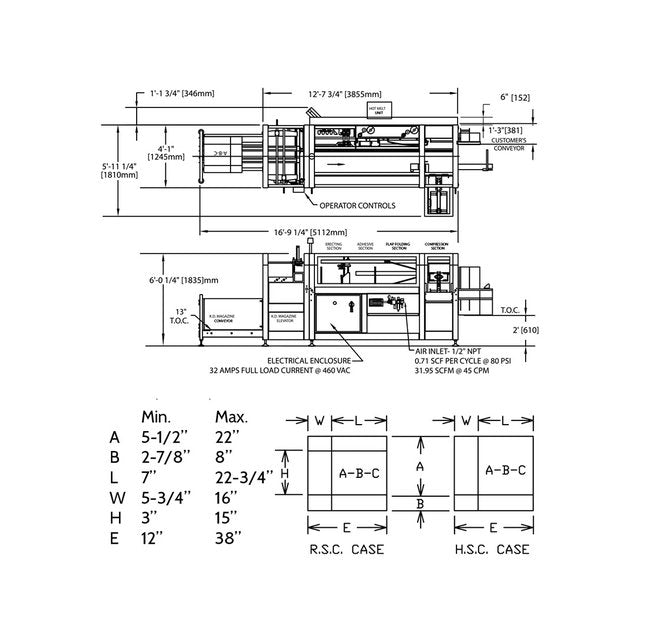

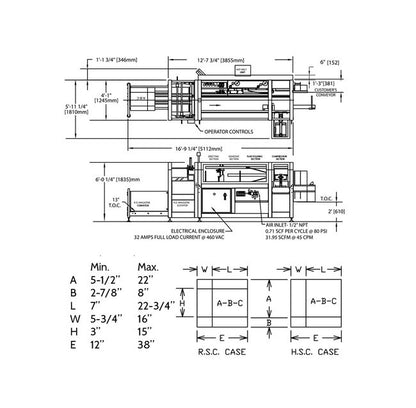

Specifications Case Style
Half Slotted Case (HSC) | Regular Slotted Case (RSC)
Specifications Kd Length
12 to 38 in
Specifications Kd Width
8 to 29-1/4 in
Specifications Speed
Up to 50 cases/min
Specifications Type
Case Erectors
