ABC Packaging Model 70 Partition Inserters
ABC Packaging Model 70 Partition Inserters
SKU:MAC-061bee
ABC Packaging Model 70 Partition Inserters combine opening and inserting in a seamless motion for precise and efficient case packing.
Regular price
$18,999.00
Regular price
Sale price
$18,999.00
Unit price
per
Initiate Order
ABC Packaging Model 70 Partition Inserters
$18,999.00
Quantity: 1
Claim Your Seller Account
ABC Packaging Model 70 Partition Inserters
$18,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

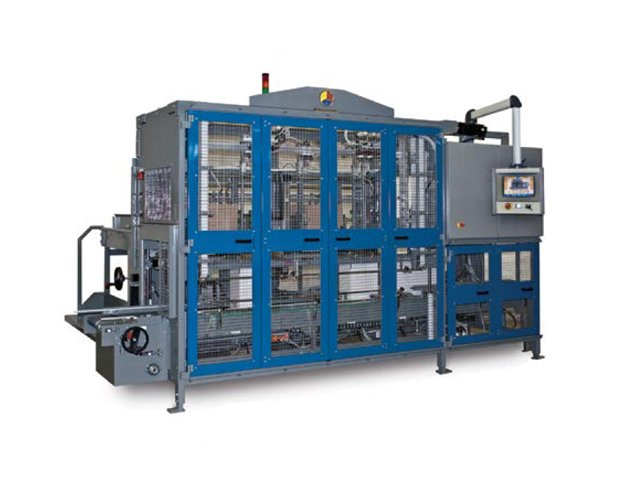

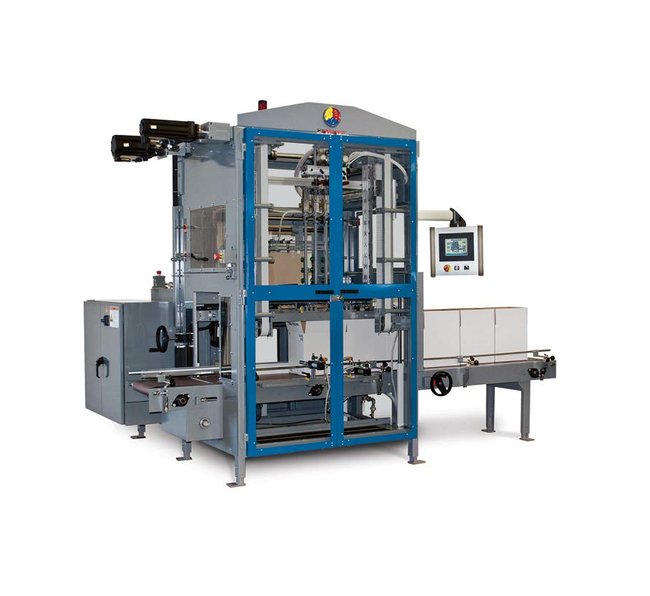

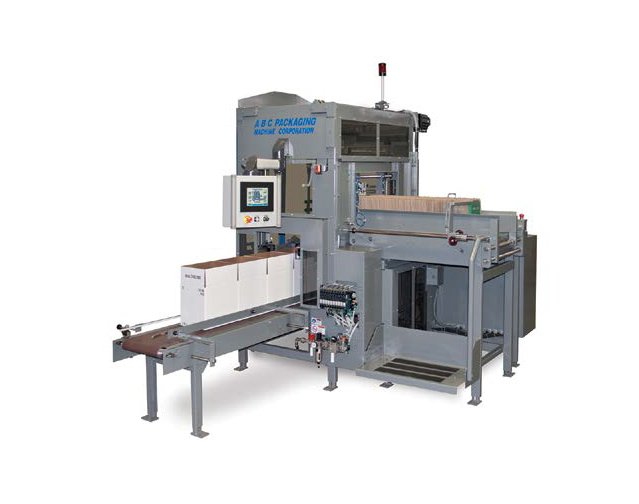

The ABC Packaging Model 70 Partition Inserters streamline the case packing process with servo-powered opening and inserting capabilities. This innovative partitioner combines two actions into one seamless motion, ensuring precise placement and efficient operation. Featuring no-tools changeover for top flexibility, a large and easy-to-load partition magazine, and an in-line design for convenient installation between erector and packer, this partition inserter is designed for optimal productivity and performance in secondary packaging operations.
Product Specifications

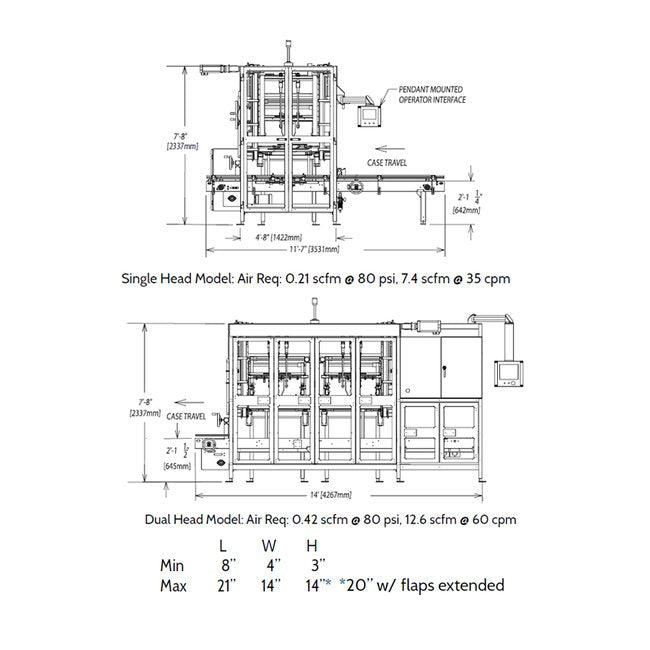

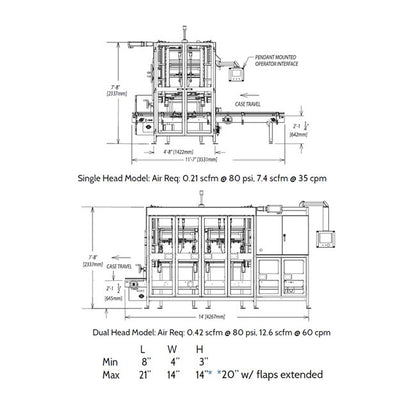

Air Flow Air Flow At 35 Cases Per Minute Cpm Single Head Model
7.4 scfm
Air Flow Air Flow At 60 Cases Per Minute Cpm Dual Head Model
12.6 scfm
Air Flow Air Flow At 80 Pound Per Square Inch Psi Pressure Dual
0.42 scfm
Air Flow Air Flow At 80 Pound Per Square Inch Psi Pressure Singl
0.21 scfm
Electrical Specifications Frequency
60 Hz
Electrical Specifications Number Of Phase
3
Electrical Specifications Primary Voltage
460 V
Features Features
Positive control for reliable performancePartitions are maintained under full control throughout indexing, opening, and inserting. Dual servos provide precise opening and inserting in one synchronized motion, and dual servo lateral stabilizers lock the partition open before insertion. Cases are indexed into correct position against conveyor stops, and funnels lower into the case to guide partitions and ensure proper alignment.Rapid, no-tools changeover ensures top flexibilityFor changeover, the operator simply selects the new size, then follows the sequence shown on the touchscreen display. Quick-turn locking handles and hand turn wheels simplify dimensional adjustments, and easy-lock modular gripper assemblies ensure a quick return to production.Large, easy load partition magazineThe magazine is designed to hold partitions in the proper compression to ensure reliable feed, and offers easy loading at any time during operation. The standard magazine holds 250 partitions and optional extended magazines are available for increased capacity.
Note Note
All information in this brochure was current at time of printing, however, in the continuing effort to improve the quality and construction of A-B-C equipment, we reserve the right to make changes without notice.
Partition Size Maximum Cell Height
14 in
Partition Size Minimum Cell Height
3 in
Partition Size Minimum Cell Size
2 x 2 in
Quality Features Quality Features
Tubular steel frame constructionDual servo drive for indexing/opening and insertingMulti-grippers firmly grip partitionsDual servo lateral stabilizers square and lock partitionsQuick, no tools changeover, step-by-step instructions accessed from touchscreen operator panelSealed bearings minimize maintenanceAutomatic water eliminator keeps air lines dry
Specifications Brand
ABC Packaging
Specifications Case Style
Half Slotted Case (HSC) | Regular Slotted Case (RSC) | Regular Slotted Case (RSC) with Tablock
Specifications Items Inserted
Partition
Specifications Partition Kd
28 in. lg Maximum | 8 in. lg Minimum
Specifications Speed
Dual Head 60 Per Minute | Single Head 35 Per Minute
