ABC Packaging Super Pro 30T Top and Bottom Tape Case Sealers
ABC Packaging Super Pro 30T Top and Bottom Tape Case Sealers
SKU:MAC-df86cf
High-speed, heavy-duty case sealer with precise case-squaring flight lugs and contoured flap folders for secure sealing.
Regular price
$5,699.99
Regular price
Sale price
$5,699.99
Unit price
per
Initiate Order
ABC Packaging Super Pro 30T Top and Bottom Tape Case Sealers
$5,699.99
Quantity: 1
Claim Your Seller Account
ABC Packaging Super Pro 30T Top and Bottom Tape Case Sealers
$5,699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

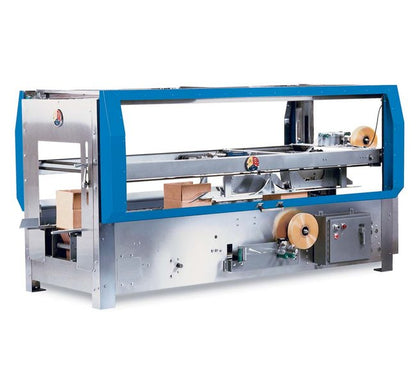

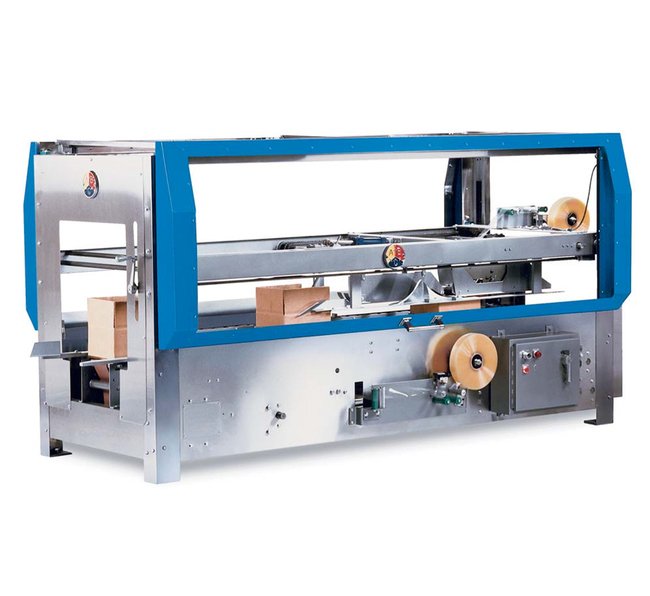

The ABC Packaging Super Pro 30T Top and Bottom Tape Case Sealers are designed for high-speed, heavy-duty case sealing operations. Featuring A-B-C's exclusive case-squaring flight lugs and contoured flap folders, this compact unit ensures precise and secure sealing of cases. With a rugged stainless steel frame and top-quality components, downtime for maintenance is virtually eliminated. The Super Pro 30T is crafted to meet demanding production needs, offering automatic case feeding, powerful sealing mechanisms, and low maintenance requirements, making it an ideal solution for both current and future production demands.
Product Specifications
Electrical Specifications Frequency
60 Hz
Electrical Specifications Number Of Phase
3
Electrical Specifications Primary Voltage
220 V | 440 V
Features Features

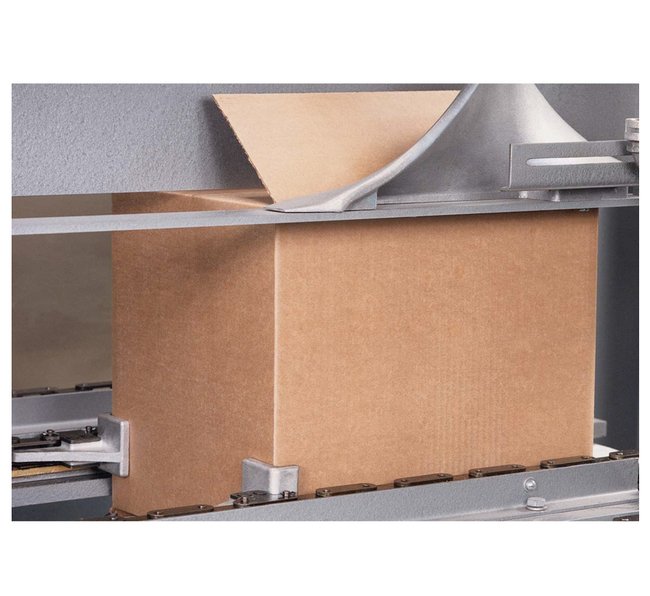

Built for ProductionThe Super Pro 30T is manufactured as a compact, integrated unit, which eliminates vibration that can lead to premature wear. The stainless steel frame is welded and bolted, and the upper operating mechanisms are secured to the frame by a solid rack and gear system. Drive shafts are solid 1-1/4" steel. The flight lugs are forged of cast aluminum for strength, mounted on wear-resistant 1-1/2" pitch flight chain. With a total machine weight of over 2,200 pounds, the Super Pro 30T can handle the toughest production situations.No Operator RequiredEach case is automatically indexed into the sealer from your conveyor. As the motor-driven flight lugs transfer the case through the sealer, the top inner flaps are folded by a powered flap tucker. Then, the outer flaps are folded and tape is applied. The case exits the machine sealed, square and ready for palletizing.Attractive and Functional DesignThe design of the Super Pro 30T is attractive as well as functional. The sleek stainless steel frame won't rust and never needs painting. The clear, gull-wing doors are standard protection on the Super Pro 30T, not special order. They are electrically interlocked to stop the sealer when opened, allowing total access to the machine.Features for Square CasesA-B-C's exclusive flight lugs push cases from the corners, "squaring" each case during transfer. Flight lugs are superior to other methods of case transfer, including flight bars, which can become skewed or bent and form unsquare cases. A-B-C flight lug drive has been proven in thousands of installations as an extremely reliable and durable method of case transfer.The cast aluminum flap folders are gradually contoured to fold the flaps at the score line then close them smoothly with no flap overlap. Even cases with poor scores are folded squarely.Easy Tape Roll ReplacementThe Super Pro 30T is equipped with features to eliminate wasted tape and to dramatically reduce lost production time for tape roll changes. First, both the top and bottom tape rolls are exterior mounted to allow easy access. Second, a "roll empty" sensor stops the sealer just as the end of the tape comes off the roll. The attendant simply replaces the roll, and attaches the new roll to the tail of the last roll.Low MaintenanceThe rugged construction of the Super Pro is your guarantee that it will run longer with less wear or care. Plus, we've added features to minimize your maintenance tasks.The main drive gear assembly is enclosed in a lubricating oil bath to eliminate gear wear. Sealed bearings and self-lubricated air cylinders never need maintenance. The automatic water eliminator prevents air valve damage caused by water in air lines. When routine maintenance or cleaning is necessary, the gull-wing doors swing out of the way to allow complete machine access.
Note Note
All information in this brochure was current at time of printing, however, in the continuing effort to improve the quality and construction of A-B-C machines, we reserve the right to make changes without notice. Guards may be opened or removed for photos shown.
Specifications Air Flow Per Case At 60 Pound Per Square Inch Psi
0.05 ft³
Specifications Applications
Case Sealers
Specifications Brand
ABC Packaging
Specifications Maximum Tape Roll Diameter
15-1/2 in
Specifications Sealing Method
Tape
Standard Features Standard Features
Automatic case feedAutomatic minor flap closingHeavy-duty flight lug driveCast aluminum flap foldersTop quality taping headsTape- 2" width standard3" width availableGull-wing style high visibility doorsRapid-adjust cranks for case changeExterior-mounted tape rollsRugged stainless steel frameMaintenance-free sealed bearingsMain gear drive in sealed oil bathSelf-lubricating air cylindersAutomatic water eliminatorLow voltage control circuit transformerConvenient power on-off button
