ABU 125 Series Adjustable Output Power Supply
ABU 125 Series Adjustable Output Power Supply
SKU:POW-a211a9
Reliable 125W ABU 125 Series Power Supply with adjustable output voltage range of 22.8-25.2V. Ideal for industrial and telecom applications.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
ABU 125 Series Adjustable Output Power Supply
$89.99
Quantity: 1
Claim Your Seller Account
ABU 125 Series Adjustable Output Power Supply
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

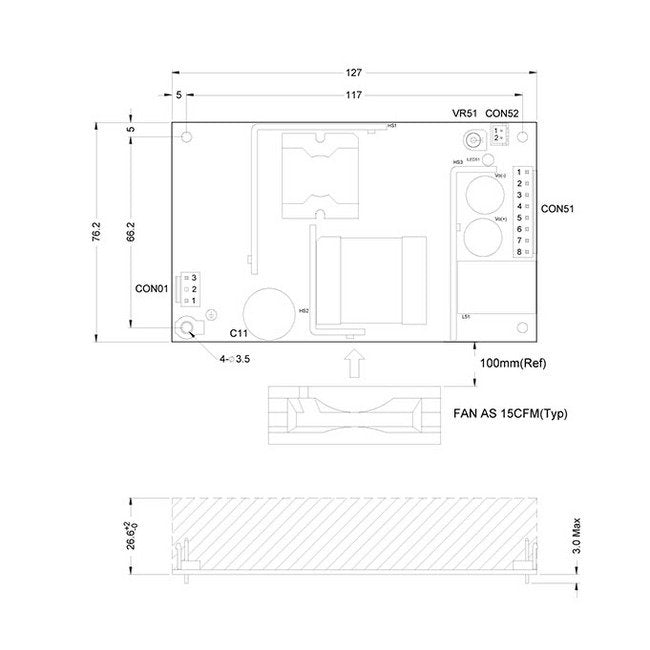

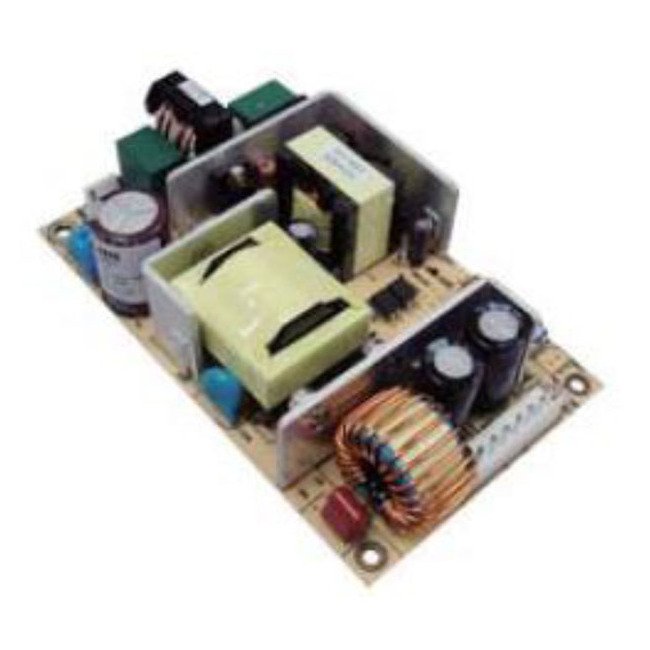

The ABU 125 Series Switch Mode Power Supply offers a versatile 22.8 to 25.2 Volt adjustable output voltage range, perfect for industrial and telecommunications applications. With exceptional performance and compliance to European EMC standards, this 125 Watt single output power supply ensures high reliability and efficiency. Measuring at 127mm in length, 76.2mm in width, and 27.0mm in height, this open frame unit is designed to meet the demands of both consumer and institutional markets.
Product Specifications
Emc And Safety Specifications At 25 C Emi Emissions
Compliance to EN55022, CISPR22 Class B (Conducted & Radiated)
Emc And Safety Specifications At 25 C Ems Immunity
Compliance to EN61000-4-2, 3-6, 8 & 11; EN55024 heavy, light industry level, criteria A
Emc And Safety Specifications At 25 C Harmonic Current
Compliance to EN61000-3-2, 3
Emc And Safety Specifications At 25 C Note For Emc And Safety Sp
The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
Emc And Safety Specifications At 25 C Safety Approval
UL 60950-1, (Insulation Class -1)
Environmental Specifications At 25 C Non Condensing Relative Ope
20 to 90 %
Environmental Specifications At 25 C Non Condensing Relative Sto
10 to 95 %
Environmental Specifications At 25 C Operating Temperature At Fu
-20 to 50 ºC
Environmental Specifications At 25 C Storage Temperature
-40 to 85 ºC
Environmental Specifications At 25 C Temperature Drift 0 To 50 C
< 0.04 %/ºC
Environmental Specifications At 25 C Vibration
10 to 500 Hz, 2G 10 min/cycle, period of 60 min, each X, Y & Z axis
General Specifications At 25 C Alternating Current Ac Dielectric
0.5 kV
General Specifications At 25 C Cooling
Natural Convection or Fan at 15 CFM
General Specifications At 25 C Height
27.0 mm | 1.05 in
General Specifications At 25 C Isolation Resistance At 500 Vdc I
100 MO
General Specifications At 25 C Isolation Resistance At 500 Vdc O
100 MO
General Specifications At 25 C Length
127 mm | 5.00 in
General Specifications At 25 C Minimum Mean Time Between Failure
200 K hr
General Specifications At 25 C Warranty
3 years
General Specifications At 25 C Weight
300 g
General Specifications At 25 C Width
76.2 mm | 3.00 in
Input Characteristics At 25 C Alternating Current Ac Input Volta
90 to 264 V
Input Characteristics At 25 C Direct Current Dc Input Voltage
127 to 373 V
Input Characteristics At 25 C Input Current At 115 Vac Root Mean
1.6 A
Input Characteristics At 25 C Input Current At 230 Vac
0.8 A
Input Characteristics At 25 C Input Frequency Range
47 to 63 Hz
Input Characteristics At 25 C Leakage Current At 240 Vac
< 2.4 mA
Input Characteristics At 25 C Power Factor At 115 Vac For Full L
> 0.98
Input Characteristics At 25 C Power Factor At 230 Vac For Full L
> 0.95
Output Characteristics At 25 C Adjustable Output Voltage Range
22.8 to 25.2 V
Output Characteristics At 25 C Direct Current Dc Output Voltage
24 V
Output Characteristics At 25 C Direct Current Dc Over Voltage Pr
27.6 to 32.4 V
Output Characteristics At 25 C Direct Current Dc Voltage Toleran
±2.0 %
Output Characteristics At 25 C Output Power 15 Cfm Fan
125 W
Output Characteristics At 25 C Output Power Convection
100 W
Output Characteristics At 25 C Ripple And Noise Voltage At Peak
120 mV
