AC Voltage Temperature Controller 100-240V
AC Voltage Temperature Controller 100-240V
SKU:PRO-23ecb1
Efficiently regulate temperatures with the AC Voltage Temp Controller 100-240V by Autonics. Versatile control methods, precise monitoring, and compact design for industrial use.
Regular price
$137.95
Regular price
Sale price
$137.95
Unit price
per
Initiate Order
AC Voltage Temperature Controller 100-240V
$137.95
Quantity: 1
Claim Your Seller Account
AC Voltage Temperature Controller 100-240V
$137.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

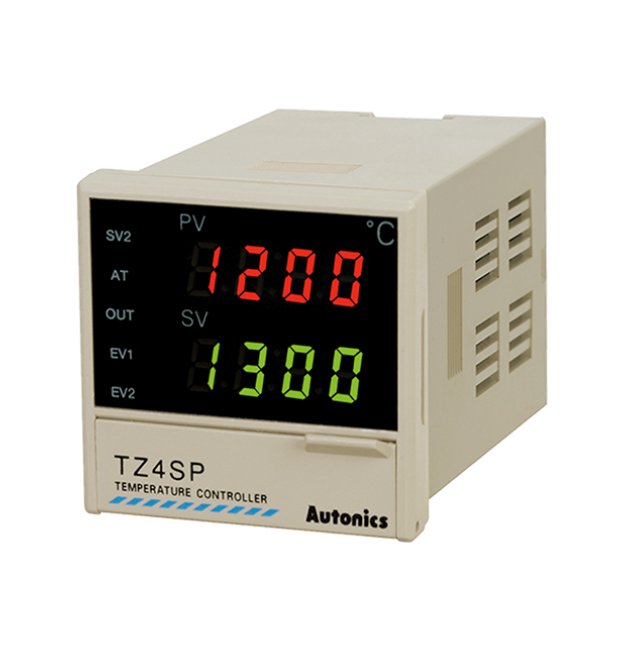

The 100 to 240 Volt Alternating Current (AC) Voltage Temperature Controller by Autonics USA offers versatile control methods including On/Off Control, PID, and PIDS. With approval from CURUS and CE, this controller ensures precise temperature regulation. Features a 4-Digit LED display, SSR voltage output, and compatibility with various thermocouple and RTD inputs. The unit also boasts alarm outputs, ramp settings, and a compact 48 x 48 mm design for efficient space utilization.
Product Specifications
Specifications Alarm Output
Alarm1
Specifications Alarm Output Hysteresis
1 to 100ºC (0.1 to 100.0ºC) Variable
Specifications Alternating Current Ac Voltage
100 to 240 V
Specifications Analog Input Specification
0 to 10VDC | 1 to 5 VDC | DC 4 to 20mA
Specifications Approval
Canadian and US Standards by Underwriters' Laboratories (CURUS) | European Conformity (CE)
Specifications Control Method
On/Off Control | P | PD | PI | PIDF | PIDS Control
Specifications Control Output
SSR voltage output
Specifications Control Period
1 to 120 s
Specifications Derivative Time
0 to 3600 s
Specifications Dimensions
48 x 48 mm (11pin plug type)
Specifications Display Accuracy
F.S ± 0.3% or 3ºC, Select the Higher One
Specifications Display Method
4-Digit 7-Segment Light Emitting Diode (LED)
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 50 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-20 to 60 ºC
Specifications Frequency
50 Hz | 60 Hz
Specifications Integral Time Range
0 to 3600 s
Specifications Lba Setting
1 to 999
Specifications List Price
137.95 USD
Specifications Option Output
Event 1
Specifications Proportional Band
0.0 to 100.0
Specifications Ramp Setting
Ramp Up, Ramp Down: 1 to 99 Minutes Each
Specifications Resistance Temperature Detector Rtd Input Specifi
DPt100Ω | JPt100Ω
Specifications Sampling Cycle
500 ms
Specifications Shipping Weight
144 g
Specifications Thermocouple Input Specification
E(CR) | J(IC) | K(CA) | N(NN) | R(PR) | S(PR) | T(CC) | W(TT)
Specifications Type
Dual PID
Specifications Unit Weight
205 g
Specifications Weight
0.49 lb
