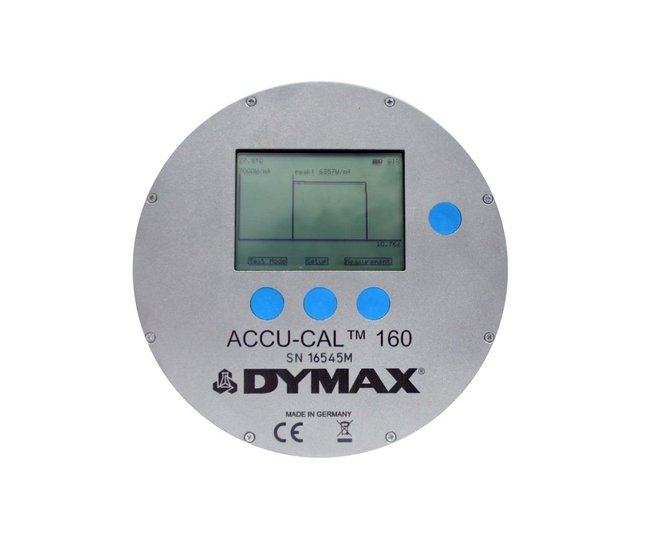

ACCU-CAL⢠160 LED Intensity Meter Radiometer for Light-Curing
ACCU-CAL⢠160 LED Intensity Meter Radiometer for Light-Curing
SKU:ULT-59a487
Ensure precise UV & LED light dosing with the ACCU-CALâ„¢ 160 LED Intensity Meter Radiometer for light-curing processes.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
ACCU-CAL⢠160 LED Intensity Meter Radiometer for Light-Curing
$249.99
Quantity: 1
Claim Your Seller Account
ACCU-CAL⢠160 LED Intensity Meter Radiometer for Light-Curing
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The ACCU-CAL⢠160 LED Intensity Meter Radiometer simplifies UV and LED light dosing validation for light-curing processes. With an intensity range of 1 mW/cm² to 10 W/cm², this radiometer offers improved features such as a longer 12-month calibration cycle, intuitive setup screen, and a clear graphical display. It ensures consistent curing by measuring intensity or total energy, making it ideal for stationary flood lamps and conveyor systems. Easily controlled manually or via USB remote interface, this radiometer enhances process control and efficiency.
Product Specifications
Additional Information 0
A data download kit is included with each radiometer at no charge and downloads easily into Microsoft Excel.Measurement results are displayed on the integrated LCD display or transmitted by the USB remote interface to a computer.Radiometers measure the intensity of energy at specific wavelengths. UV light is, by definition, not visible to the human eye, so a radiometer is required to determine the amount of UV energy. The ability to measure light intensity is useful for three reasons:Maintaining a light-curing process - A radiometer can measure whether a light-curing system is providing intensity above the "bulb change" intensity. A radiometer is to a light-curing process what a thermometer is to a heat-curing process.Providing a worker-friendly light-curing process - A radiometer is required to determine if any UV light is reaching operators or bystanders.Measuring transmission rates through substrates - A radiometer can be used to measure the transmission rates of various wavelengths through substrates that absorb UV and/or visible light. To assure an effective curing process it is critical to measure the light intensity reaching the light-curable material below the intervening substrate.
Dymax Accu Cal Radiometers 0
Dymax® offers ACCU-CAL⢠radiometers for spots, floods, and conveyors. Kits for spot lamps include the complete radiometer with 3, 5, and 8-mm lightguide adapters and a lightguide simulator. Adapter kits are available separately for users who have an existing flood/conveyor kit and need to use it for spot systems. All radiometer kits include a storage/carrying case. ACCU-CAL⢠radiometers are calibrated to measure either UV-A (320 to 390 nm), LED (~ 350 to 450 nm), or visible (395 nm to 465 nm) light intensity.
Features 0
Clear, Easy-to-Read Graphical DisplayFor Use with Flood Lamp or Conveyor Systems
Measurement Modes Dose Measurement Modes
mJ/cm²
Measurement Modes Peak Intensity Measurement Modes
mW/cm²
Operating Temperature Ranges Internal Operating Temperature Rang
0 to 75 ºC
Power Supply Battery Power
800 mA·h
Power Supply Battery Type
Lithium Polymer
Power Supply Current
500 mA
Power Supply Direct Current Dc Voltage
5 V
Radiometer Calibration 0
Dymax® recommends calibrating the ACCU-CAL⢠160 radiometer every 12 months to ensure proper operation of the instrument. Calibration services are available at Dymax®.
Reasons To Use A Radiometer 0
Validating and Maintaining a Light-Curing Process - A radiometer provides a quantifiable measurement that verifies if the light-curing process is operating within the qualified parameters. Since all UV bulbs degrade over time, the radiometer will reveal the optimal time for bulb replacement in an UV light-curing device. Radiometers provide the same monitoring control for light-curing processes that thermometers provide for thermal processes.Measuring Transmission Rates Through Substrates - A radiometer can be used to measure the transmission rates of various wavelengths through substrates that sometimes absorb various frequencies of energy. To assure an effective curing process it is critical to measure the light intensity reaching the cure site below any intervening substrate.
Resolution Dose
1 mJ/cm²
Resolution Intensity
1 mW/cm²
Specifications Accuracy
0.5 %
Specifications Approval
CE Marked
Specifications Battery Life
10 hours (backlight on, no operation) or 6 hours (backlight on, full operation)
Specifications Calibration Period
12 months
Specifications Intensity Range
1 mW/cm² to 10 W/cm²
Specifications Light Sources Application
Light Emitting Diode (LED) Light-Curing Flood Lamps and Conveyor Systems
Specifications Model
Light Emitting Diode (LED)
Specifications Spectral Sensitivity
350 to 460 nm
