ACCU-CAL⢠50-LED UV Radiometer for Curing Systems
ACCU-CAL⢠50-LED UV Radiometer for Curing Systems
SKU:ULT-89a91a
Monitor, measure, and ensure precision in curing processes with the ACCU-CALâ„¢ 50-LED UV Radiometer, ideal for LED flood lamps and spot curing.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
ACCU-CAL⢠50-LED UV Radiometer for Curing Systems
$499.99
Quantity: 1
Claim Your Seller Account
ACCU-CAL⢠50-LED UV Radiometer for Curing Systems
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

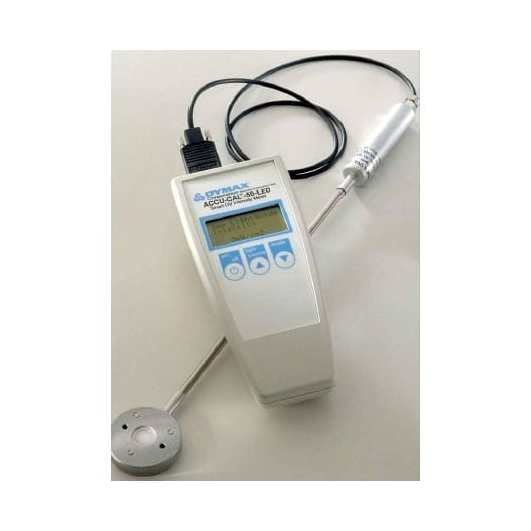

The ACCU-CALâ„¢ 50-LED UV Radiometer is a reliable tool for monitoring light energy levels in curing processes. Designed for precision, it accurately measures energy intensity from various light sources like LED flood lamps and BlueWave® QX4â„¢ heads. This radiometer ensures consistent curing results through a spectral sensitivity range of 350 to 450 nm and an intensity range from 1 mW/cm² to 40 W/cm². With features like a photo-sensor assembly for repeatable measurements and protection against high temperatures, it's ideal for both spot and flood lamp applications. Enhance your light-curing process efficiency with this calibrated instrument complete with a storage/carrying case.
Product Specifications
Dymax Accu Cal Radiometers 0
Dymax® offers ACCU-CAL⢠radiometers for spots, floods, and conveyors. Kits for spot lamps include the complete radiometer with 3, 5, and 8 mm lightguide adapters and a lightguide simulator. Adapter kits are available separately for users who have an existing flood/conveyor kit and need to use it for spot systems. All radiometer kits include a storage/carrying case. ACCU-CAL⢠radiometers are calibrated to measure either UV-A (320 to 390 nm), LED (~ 350 to 450 nm), or visible (395 nm to 465 nm) light intensity.
Features 0
Simple to OperateCan be Used to Test Spot or Flood Lamps, as Well as Conveyor SystemsSet Screw Locks Lightguide in PlacePTB and NIST Traceable
Measurement Modes Dose Measurement Modes
J/cm²
Measurement Modes Intensity Measurement Modes
mW/cm² | W/cm²
Measurement Modes Peak Intensity Measurement Modes
mW/cm² | W/cm²
Meter Dimensions Meter Length
145 mm
Meter Dimensions Meter Thickness
30 mm
Meter Dimensions Meter Width
63 mm
Operating Temperature Ranges Continuous Detector Operating Tempe
120 ºC
Operating Temperature Ranges Continuous Peak Operating Temperatu
200 ºC
Operating Temperature Ranges Optometer Operating Temperature Ran
+ 5 to + 40 ºC
Power Supply Battery Type
AA
Power Supply Number Of Battery
2
Radiometer Calibration 0
Dymax® recommends calibrating the ACCU-CAL⢠50-LED radiometer annually to ensure proper operation of the instrument. Calibration services are available through Dymax®.
Resolution Dose
1 mJ/cm²
Resolution Intensity
1 mW/cm²
Sensor Dimensions Cable Length
1 m
Sensor Dimensions Diameter
37 mm
Sensor Dimensions Photo Sensor Diameter
9 mm
Sensor Dimensions Thickness
8 mm
Specifications Approval
CE Marked
Specifications Battery Life
250 h
Specifications Calibration Period
12 months
Specifications Intensity Range
1 mW/cm² to 40 W/cm²
Specifications Lightguide Size
3 mm | 5 mm | 8 mm
Specifications Light Sources Application
Light Emitting Diode (LED) Flood Lamps
Specifications Spectral Sensitivity
350 to 450 nm
Three Reasons To Use A Radiometer 0
Maintaining a Reliable Light-Curing Process â A radiometer helps to ensure that a light-curing system is providing the intensity and dosage levels required for successful curing.Providing a Worker Friendly Light-Curing Process - The ACCU-CAL⢠50-LED is sufficiently sensitive to measure the intensity of stray or reflected energy (as little as 1 mW/cm2). Dymax® recommends that worker UVA exposure not exceed 1 mW/cm2. For reference, UV (320 to 395 nm) intensity on a sunny day can range from 2 to 6 mW/cm2.Measuring Transmission Rates Through Substrates - A radiometer can be used to measure the transmission rates of various wavelengths through substrates that sometimes absorb various frequencies of energy. To assure an effective curing process it is critical to measure the light intensity reaching the cure site below any intervening substrate.
